Inductive Sensor BI15-Q20-Y1X
Order Only
Minimal order quantity: 1
Price (excl. VAT):
64,17 €
EAN: 4047101064865
MPN: 1080020
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor BI15-Q20-Y1X |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 15 mm |
| Type of electric connection | Cable |
| Type of switching output | NAMUR |
| Construction type housing | Cuboid |
| Mechanical mounting condition for sensor | Concise |
| Performance level according to EN ISO 13849-1 | Level c |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4047101064865, 4047101064865 |
Other Technical data
| Cascadable | No |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Switching frequency | 1000 Hz |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 2G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |

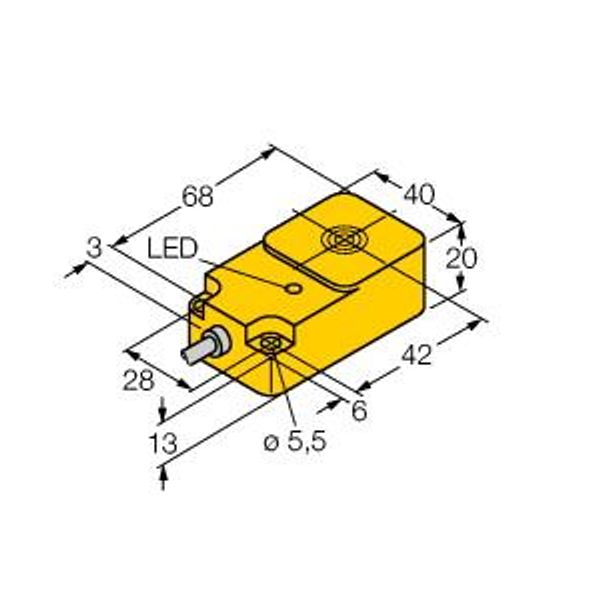

| Width sensor | 40 mm |
| Compression-resistant | No |
| Height of sensor | 20 mm |
| Length of sensor | 68 mm |
Downloads
Description
Inductieve sensor, Nominale schakelafstand 15 mm, Bondig, Kabellengte 2 m, Rechthoekig, hoogte 20 mm, Actief vlak bovenaan, Kunststof, PBT-GF30-V0, DC 2-draads, nom. 8,2 VDC, uitgang volgens DIN EN 60947-5-6 (NAMUR), kabelaansluiting, ATEX-categorie II 2 G, Ex-zone 1, ATEX-categorie II 1 D, Ex-zone 20, SIL 2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL 3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
