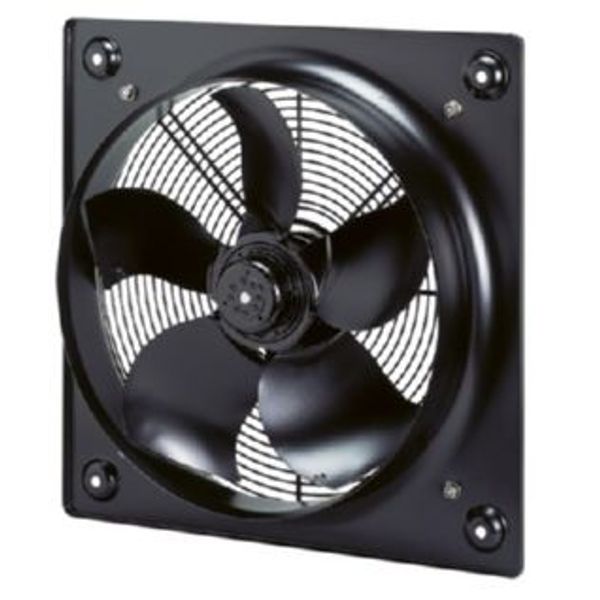

HXTR/2-250 (230/400V 50Y60) VE
Order only
Price (excl. VAT):
318,99 €
EAN: 8413893138729
MPN: 5750254400
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | HXTR/2-250 (230/400V 50Y60) VE |
| Brand | S&P |
| Categories |
Equipment Cooling Fans
|
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 5100 00 |
| Width | 315 mm |
| Height | 315 mm |
| Depth | 126 mm |
| Power consumption | 0.112 W |
| Housing material | Steel-treated |
| Operation | Mains |
| Connection voltage | 400 V |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP44 |
| With thermal protection | No |
| Hygrostat | None |
| Louver | None |
| Air volume, unloaded | 1535 m³/h |
| Air volume at pressure 2 | 1437 m³/h |
| Air volume at pressure 3 | 996.43 m³/h |
| Pressure 2 | 25 Pa |
| Pressure 3 | 100 Pa |
| Suitable for electronic control | Yes |
| Suitable for transformer control | Yes |
| Max. air temperature | 60 °C |
| Suitable for frequency control | Yes |
| Timer | None |
| Impeller diameter | 250 mm |
| With non-return valve | Yes |
Packing details
| Packing level 1 | 8413893138729 |
