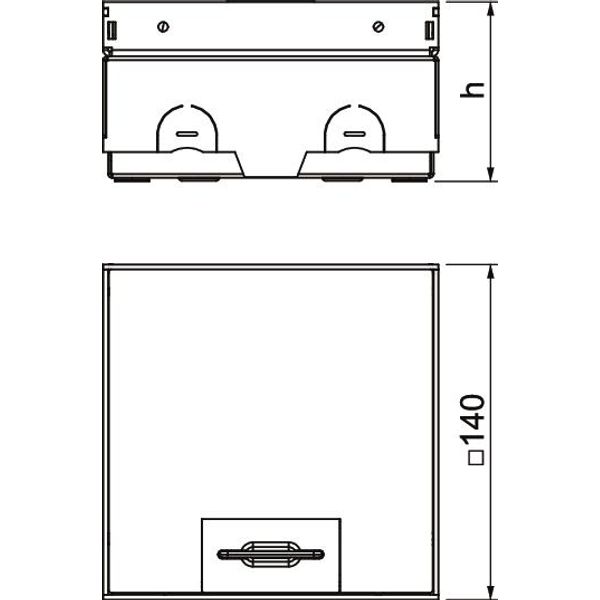

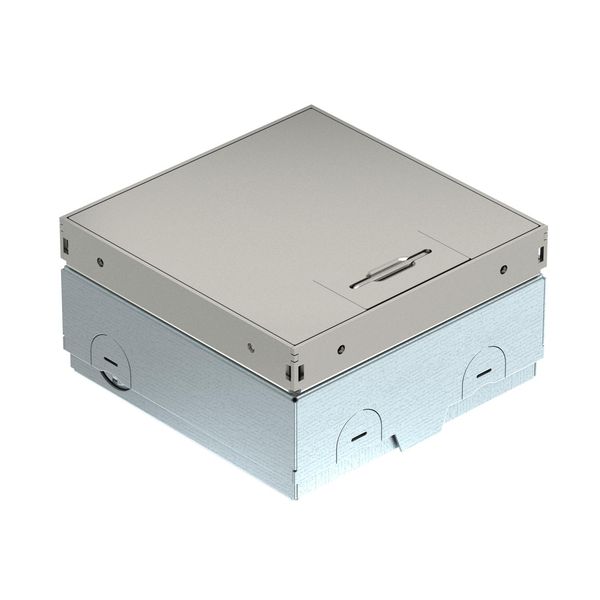

UDHOME-ONE GV Floor socket unequipped, St.Steel decor lid 140x140x75

Order only

Price (excl. VAT):

193,12 € per pcs

This price is valid until 24.12.25

EAN: 4012196874590

MPN: 7368280

Package: 1

Box: 20

Pallet: 240

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	UDHOME-ONE GV Floor socket unequipped, St.Steel decor lid 140x140x75
Brand	OBO Bettermann
Categories	Installation Device Holders
Country of origin*	HU
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8537 1098 00
Housing material	Stainless steel
Suitable for concrete installation	No
Material cover	Stainless steel
Suitable for sub-floor duct	No
Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Suitable for indoor installation	No
Suitable for outdoor installation	No
With cable outlet in cover	Yes

Packing details

Packing level 1	4012196874972
Packing level 2	4012197251819
Packing level 3	4012197274320

Other Technical data

Colour	Other
With opening carpeting	No
Protective frame carpeting	No
Suitable for wet cleaning	No
Suitable for floors in computer rooms	No

Description

Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with decorative plate. The load-bearing capacity of 15 kN is only guaranteed when in an unused state. Empty housing for a Modul45® installation device and a data socket. When delivered, the item is closed with a blind plate.
