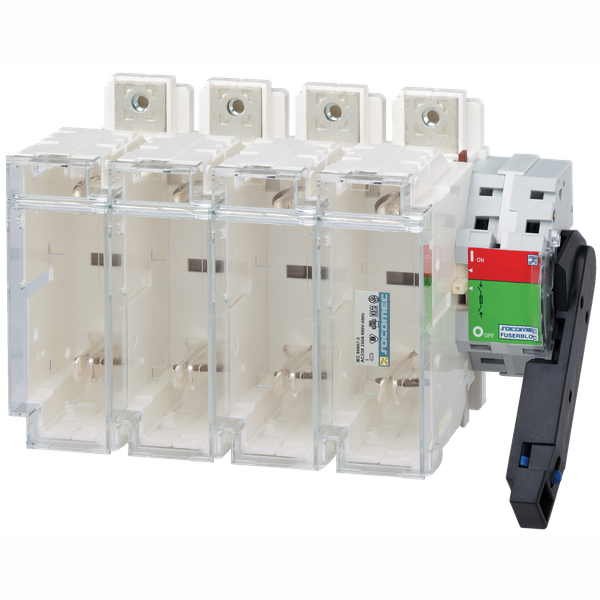

Fuse combination switch body 4P 160A for knife-edge fuse size 00. NF a
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
179,98 €
EAN: 3596031175246
MPN: 36156015
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Fuse combination switch body 4P 160A for knife-edge fuse size 00. NF a |
| Brand | Socomec |
| Categories |
Installation
Fuse Switch Disconnectors Without Housing |
| Country of origin | TN |
| Harmonized System Code | 8536 3090 00 |
| Rated permanent current Iu | 160 A |
| Number of poles | 4 |
| Degree of protection (IP), front side | IP20 |
| Suitable for fuses | NH00 |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Rated operation power at AC-23, 400 V | 80 kW |
| Max. rated operation voltage Ue AC | 690 V |
Packing details
| Packing level 1 | 3596031175246 |
Other Technical data
| Cable entry | Top/bottom |
| Conditioned rated short-circuit current Iq | 50 kA |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Bolt connection |
| Version as emergency stop installation | Yes |
| Type of control element | Rocker lever |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | Yes |
| Suitable for busbar mounting | No |
| With error protection | No |
| Motor drive optional | No |
| Position control element | Right |
| Equipped with connectors | No |
Downloads
Description
Switch-discon-fuse FUSERBLOC-Dir R OP-160A-4P-DIN-Fuse S0
