WAGO

Feedthrough terminal block;lever;Plate thickness: 3 mm;gray

Order only Minimal order quantity: 15
Price (excl. VAT):
16,49 €
This price is valid until 24.12.26
Subtotal: 247,35 € MOQ: 15
EAN: 4050821148777
MPN: 828-334
Package: 1
Box: 15
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Feedthrough terminal block;lever;Plate thickness: 3 mm;gray
Brand WAGO
Categories DIN Rail Terminal Blocks
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Mounting method Other
Rated voltage 1000 V
Number of poles 4
Number of clamp positions per pole 2
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Connectable conductor cross section solid-core 1.5-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve 1.5-10 mm²
Connectable conductor cross section fine-strand without cable end sleeve 1.5-16 mm²
Connection position Sideways
Rated current In 41 A

Packing details

Packing level 1 4050821148777
Packing level 2 4050821148777

Other Technical data

Colour Grey
Operating temperature -60-105 °C
Inflammability class of insulation material according to with UL94 V0

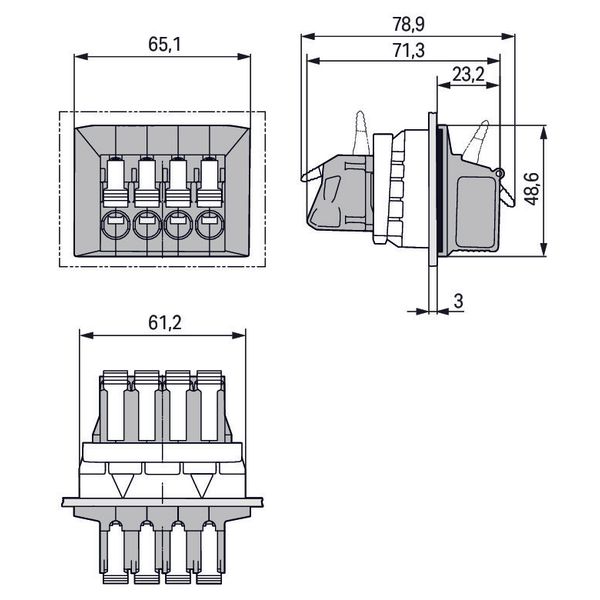

Width/grid dimension 65.1 mm
Closing plate required No
With integrated feed-through flange No
Thickness of mounting plate 3 mm
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Feedthrough terminal block | lever | Plate thickness: 3 mm | 16 mm² | Pin spacing 11.5 mm | 4-pole | CAGE CLAMP®
