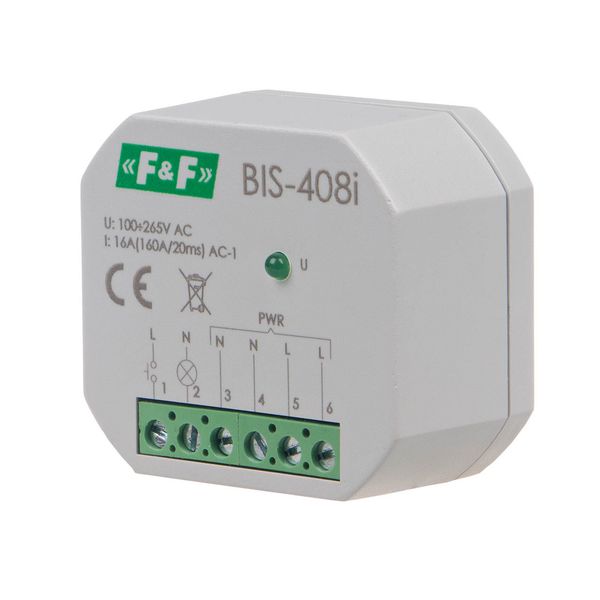

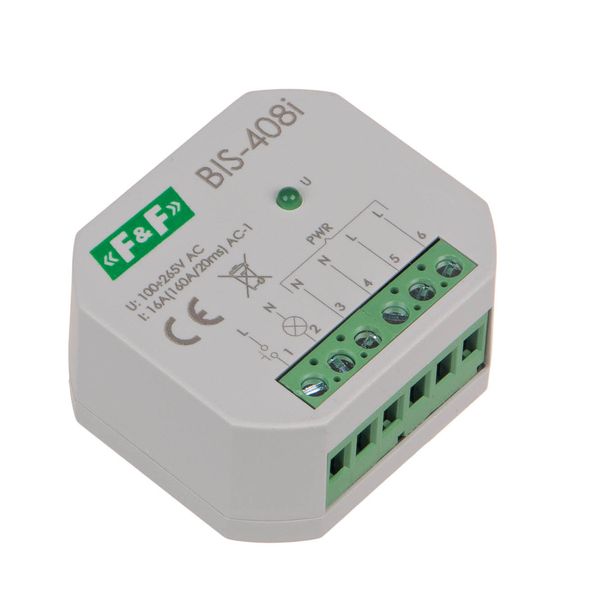

Electronic bistable impulse relay BIS-408-LED image 1
Electronic bistable impulse relay BIS-408-LED image 2
Electronic bistable impulse relay BIS-408-LED image 3
Electronic bistable impulse relay BIS-408-LED image 4
Electronic bistable impulse relay BIS-408-LED image 5
Electronic bistable impulse relay BIS-408-LED image 6
Electronic bistable impulse relay BIS-408-LED image 7
Electronic bistable impulse relay BIS-408-LED thumbnail 1
Electronic bistable impulse relay BIS-408-LED thumbnail 2
Electronic bistable impulse relay BIS-408-LED thumbnail 3
Electronic bistable impulse relay BIS-408-LED thumbnail 4
Electronic bistable impulse relay BIS-408-LED thumbnail 5
Electronic bistable impulse relay BIS-408-LED thumbnail 6
Electronic bistable impulse relay BIS-408-LED thumbnail 7
F&F

Przekaźnik bistabilny, podtynkowy, do podświetlanych przycisków z przekaźnikiem inrush 160A/20ms; BIS-408-LED

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
17,39 €
Hind kehtib kuni 24.12.25
EAN: 5908312598299
MPN: BIS-408-LED
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 2-3 weeks

Technical Information

Toote seisukord Uus
Tootja nimi Electronic bistable impulse relay BIS-408-LED
Bränd F&F
Kategooriad Latching Relays
Päritoluriik PL
Harmoneeritud süsteemi kood 8536 4900 00
Paigaldusviis Süvistatud paigaldus (krohvi)
Funktsioon Elektrooniline lüliti
Juhtpinge 1 100-230 V
Juhtpinge 1 liik AC
Toitepinge liik AC
Toitepinge 100-230 V
Tunnuslülitusvool 16 A

Pakendamise üksikasjad

Pakkimistase 1 5908312598299

Muud tehnilised andmed

Sisseehitussügavus 25 mm
Laius mooduli arvudes 1
Juhtpinge 1 sagedus 50 Hz
Käsitööriist No
Suurim lülitusvool (cos phi = 0.6) 8 A
Suurim hõõglampide koormus 3000 W
Suurim luminofoorlampide koormus 1500 VA
Suurim luminofoorlampide koormus (kaks ahelat) 1500 VA
Suurim luminofoorlampide koormus (rööpkompensatsiooniga) 1500 VA

Allalaadimised

Tarnija deklaratsioon eelistatud päritolu staatusega toodetele REACH süvalink RoHS deklaratsioon Kasutusjuhend

Kirjeldus

Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel. Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc. Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). To under plaster box Ø60. Can be used with backlit buttons.
