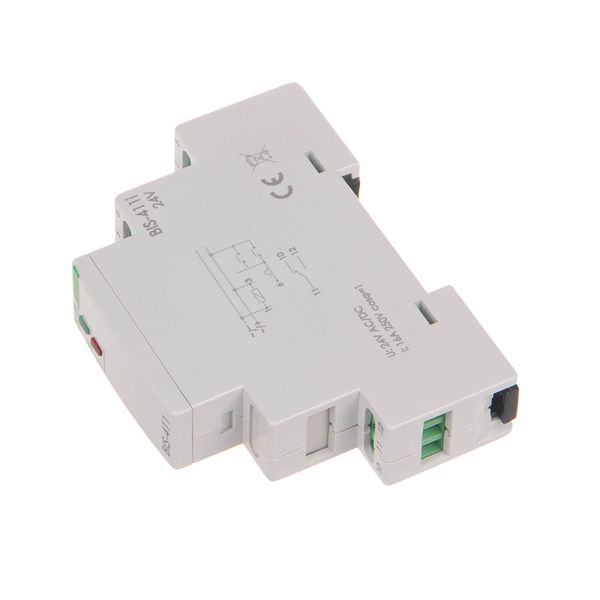

Electronic bistable impulse relay BIS-411-LED 24 V image 1
Electronic bistable impulse relay BIS-411-LED 24 V image 2
Electronic bistable impulse relay BIS-411-LED 24 V image 3
Electronic bistable impulse relay BIS-411-LED 24 V image 4
Electronic bistable impulse relay BIS-411-LED 24 V image 5
Electronic bistable impulse relay BIS-411-LED 24 V image 6
Electronic bistable impulse relay BIS-411-LED 24 V image 7
Electronic bistable impulse relay BIS-411-LED 24 V image 8
Electronic bistable impulse relay BIS-411-LED 24 V image 9
Electronic bistable impulse relay BIS-411-LED 24 V image 10
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 1
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 2
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 3
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 4
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 5
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 6
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 7
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 8
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 9
Electronic bistable impulse relay BIS-411-LED 24 V thumbnail 10
F&F

Przekaźnik bistabilny, na szynę DIN, z przekaźnikiem inrush 160A/20ms 24V; BIS-411-LED-24V

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
17,39 €
Hind kehtib kuni 24.12.25
EAN: 5908312598695
MPN: BIS-411-LED-24V
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 2-3 weeks

Technical Information

Toote seisukord Uus
Tootja nimi Electronic bistable impulse relay BIS-411-LED 24 V
Bränd F&F
Kategooriad Latching Relays
Päritoluriik PL
Harmoneeritud süsteemi kood 8536 4190 00
Paigaldusviis DIN liist
Funktsioon Elektrooniline lüliti
Juhtpinge 1 9-30 V
Juhtpinge 1 liik AC/DC
Toitepinge liik AC
Toitepinge 100-230 V
Tunnuslülitusvool 16 A

Pakendamise üksikasjad

Pakkimistase 1 5908312598695

Muud tehnilised andmed

Laius mooduli arvudes 1
Juhtpinge 1 sagedus 50 Hz
Käsitööriist No
Suurim lülitusvool (cos phi = 0.6) 16 A
Suurim hõõglampide koormus 3000 W
Suurim luminofoorlampide koormus 750 VA
Suurim luminofoorlampide koormus (kaks ahelat) 750 VA
Suurim luminofoorlampide koormus (rööpkompensatsiooniga) 750 VA

Allalaadimised

Tarnija deklaratsioon eelistatud päritolu staatusega toodetele REACH süvalink RoHS deklaratsioon Kasutusjuhend

Kirjeldus

Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel. Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc. Power supply 24V AC. Maximum load 16 A (160 A/20 ms). On TH-35 mm rail. Can be used with backlit buttons.
