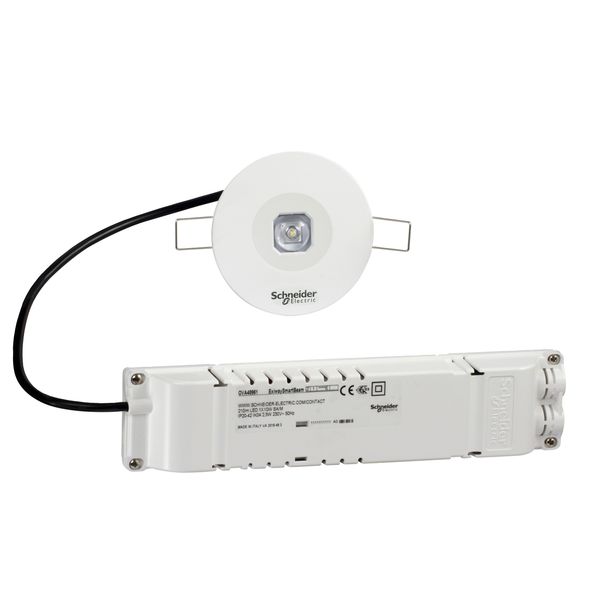

Emergency luminaire, Exiway Smartbeam, EPC, 216 V DC-230 V AC, IP20-42, 200 lm, M-NM, recessed model
Order only
Price (excl. VAT):
164,32 €
EAN: 3606489729967
MPN: OVA46026
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Emergency luminaire, Exiway Smartbeam, EPC, 216 V DC-230 V AC, IP20-42, 200 lm, M-NM, recessed model |
| Brand | Schneider Electric |
| Categories |
Emergency luminaires
|
| Harmonized System Code | 9405 1140 00 |
| Width | 90 mm |
| Length | 240 mm |
| Height/depth | 32 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP42 |
| Colour temperature | 4500 K |
| Max. system power | 3 W |
| Rated luminous flux according to IEC 62722-2-1 | 200 lm |
Packing details
| Packing level 1 | 3606489729967 |
| Packing level 2 | 3606489729964 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Outer diameter | 0 mm |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 0 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | Yes |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Suitable for labelling type | Other |
| Type of indicator | Single/double-sided |
| Number of poles | 2 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Built-in length | 0 mm |
| Material cover | Plastic, transparent |
| Battery quality | Lithium-ions |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 0 |
| With remote switch connection | Yes |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| Recognition distance | 0 m |
| Constant light output (CLO) | Yes |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Luminous flux in standby mode | 0 lm |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| LED nominal current at constant current | 150 mA |
| Light distributor | Diffuser lens/optic/panel |
| Nominal operation time | 1-8 h |
| Exchangeable control gear | No |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
