Emergency Exit Sign Addressable IP40 26m 1.5h LFP
Order only
Price (excl. VAT):
175,23 €
EAN: 3606481179739
MPN: OVA48604
Package: 1
Box: 7
Pallet: 56
Estimate delivery time to our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Emergency Exit Sign Addressable IP40 26m 1.5h LFP |
| Brand | Schneider Electric |
| Categories |
Emergency luminaires
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 4750-5250 K |
Packing details
| Packing level 1 | 3606481179739 |
| Packing level 2 | 3606481179737 |
| Packing level 3 | 3606481179739 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route lighting/signage |
| Lamp holder | None |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | Yes |
| Suitable for labelling type | Acrylic plate |
| Type of indicator | Single/double-sided |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Material cover | Plastic, opal |
| Battery quality | Lithium-ions |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With remote switch connection | Yes |
| Monitoring equipment | Automatic self test |
| Constant light output (CLO) | No |
| With pictogram | Yes |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| LED nominal current at constant current | 120 mA |
| Light distributor | Diffuser lens/optic/panel |
| Nominal operation time | 1.5 h |
| Exchangeable control gear | No |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Mounting instruction
Declaration DOC CE (Declaration of conformity CE)
Description

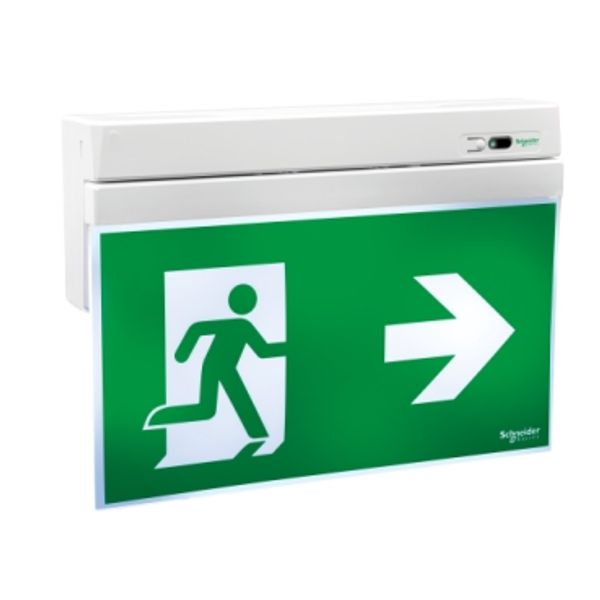

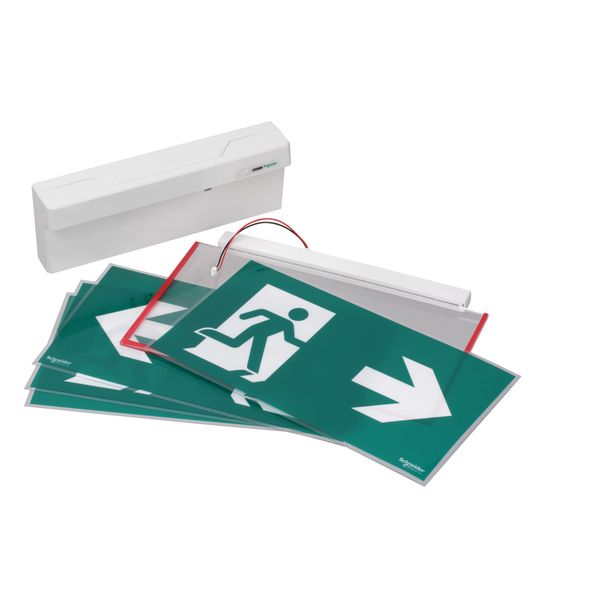

OVA48604 is an Exiway Smartexit Dicube emergency exit sign addressable and maintained. This emergency exit sigh integrates a LED 100000 h bulb type with 1 hour 30 of autonomy. It has a visibility distance of 26 m. It has 1 battery capacity of 1.5 Ah, a Voltage of 3.2 V LiFePO4. This device can be mounted on a surface wall or ceiling, in a hanging ceiling and flush false ceiling. It can be also mounted in a flag type bracket wall. Its dimensions are 260 mm height, 190 mm width and 45 mm depth, with a product weight of 600 g. With an IP40 degree of protection, it has a fire resistance of 850 °C and it is EN/IEC 60598-2-22 and EN 62034 product certified.
