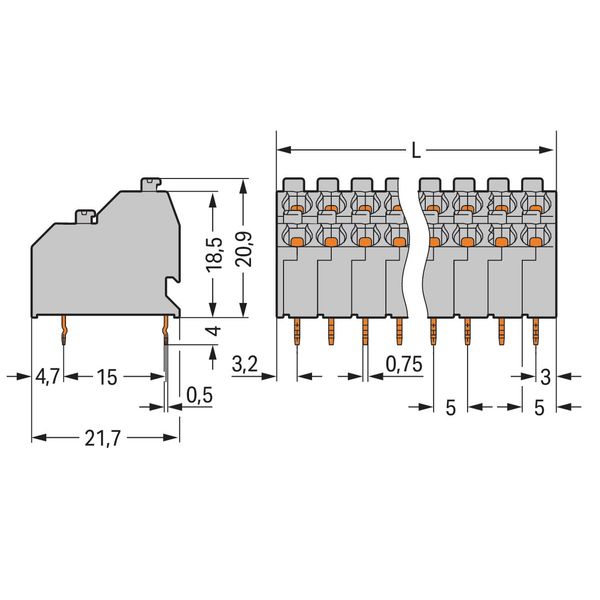

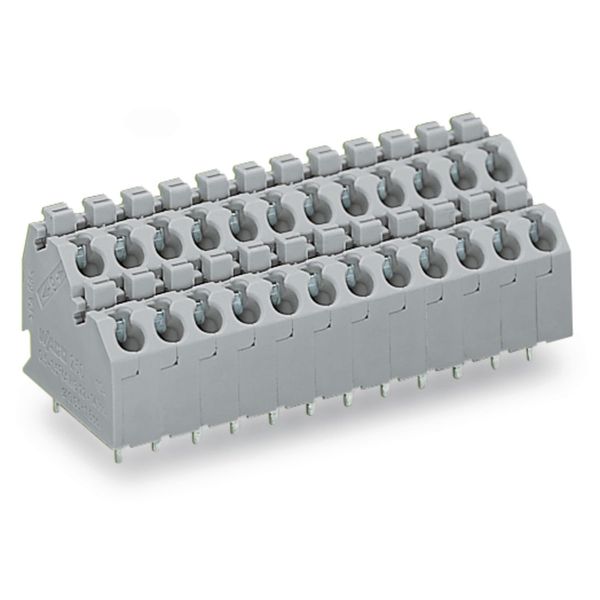

Double-deck PCB terminal block push-button 1.5 mm² agate gray image 1
Double-deck PCB terminal block push-button 1.5 mm² agate gray image 2
Double-deck PCB terminal block push-button 1.5 mm² agate gray image 3
Double-deck PCB terminal block push-button 1.5 mm² agate gray image 4
Double-deck PCB terminal block push-button 1.5 mm² agate gray thumbnail 1
Double-deck PCB terminal block push-button 1.5 mm² agate gray thumbnail 2
Double-deck PCB terminal block push-button 1.5 mm² agate gray thumbnail 3
Double-deck PCB terminal block push-button 1.5 mm² agate gray thumbnail 4
WAGO

Double-deck PCB terminal block push-button 1.5 mm² agate gray

Order only Minimal order quantity: 12
Price (excl. VAT):
4,52 €
This price is valid until 31.12.25
Subtotal: 54,24 € MOQ: 12
EAN: 4044918300988
MPN: 250-710
Package: 1
Box: 12
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name Double-deck PCB terminal block push-button 1.5 mm² agate gray
Brand WAGO
Categories PCB Connectors & Terminals
Country of origin* CH
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Rated voltage 320 V
Number of levels 2
Rated surge voltage 4 kV
Angle PCB/conductor connection 45°/135° (downwards inclined)
Rated current In 10 A
Number of electrical connections 10

Packing details

Packing level 1 4044918300988
Packing level 2 4044918300988
Packing level 3 4044918300988

Other Technical data

Height 20.9 mm
Colour housing Grey
Operating temperature -60-105 °C
Type of fastening Solder
Inflammability class of insulation material according to with UL94 V0
Over voltage category III
Pollution degree 2
Connection type conductor Push-in clamp connection
Connection type PCB Soldering connection
Length pin 4 mm
Material connection surface Tin
Modular spacing connections 5 mm
Type of banding None
Connectable conductor cross section solid-core 0.5-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-1 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.75-1.5 mm²
Connectable conductor cross section multi-wired 0.5-1.5 mm²
Material insulation body Thermoplastic
Type of PCB fastening Connecting contact

Description

Double-deck PCB terminal block push-button 1.5 mm² Pin spacing 5 mm 20-pole Push-in CAGE CLAMP® 1,50 mm² agate gray
