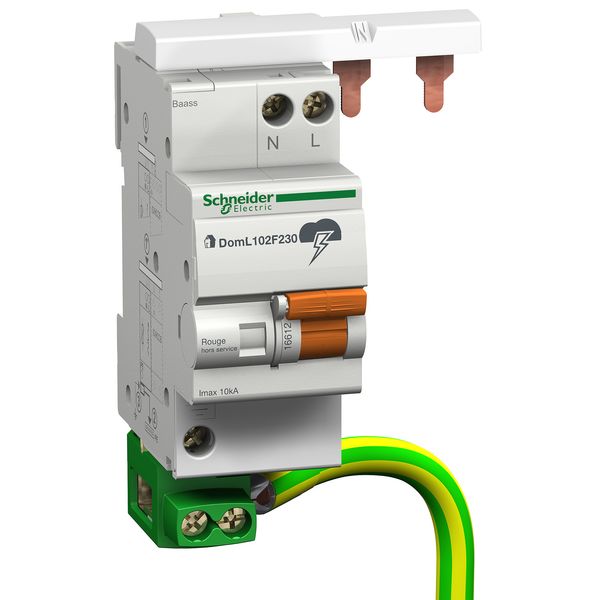

DOMAE OVERSPANNINGBEV. PF 10KA 1P+N
Order only
Price (excl. VAT):
121,56 €
EAN: 3303430166122
MPN: 16612
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | DOMAE OVERSPANNINGBEV. PF 10KA 1P+N |
| Brand | Schneider Electric |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | BE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8535 4000 00 |
| Voltage protection level | 1.5 kV |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal voltage AC | 230 V |
| Nominal voltage DC | 0 V |
| Voltage protection level L-N | 1.5 kV |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 0 V |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 3303430166122 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |
| Number of conductors (without earthing) | 1 |
| Construction size | 4 modular spacing |
| Max. continuous voltage AC | 275 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. continuous voltage DC | 0 V |
| Voltage protection level N-PE | 1.5 kV |
| Integrated backup fuse | Yes |
| Max. conductor cross section solid (solid, stranded) | 25 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| System configuration TN-C | No |
| System configuration TN-S | Yes |
| System configuration TT | Yes |
| System configuration other | No |
| Max. discharge surge current (8/20) | 10 kA |
| Short-circuit breaking capacity (Isccr) | 0 kA |
| Max. overcurrent protection device, parallel connection (fuse) | 0 A |
| Max. overcurrent protection device, series connection (fuse) | 0 A |
| Integrated short-circuit protection selective to fuse gG | 0 A |
