Distribution box Two-way circuit 1 input black
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
31,24 €
EAN: 4055143295086
MPN: 899-631/308-000
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Distribution box Two-way circuit 1 input black |
| Brand | WAGO |
| Categories |
Compact Distributors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 25 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Other |
| Contact material | Other |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | Two-way switching |
| Type of distributor | Distribution terminal block |
| Rated current to luminaire | 25 A |
| Mounting possibility | With separate adapter |
Packing details
| Packing level 1 | 4055143295086 |
Other Technical data

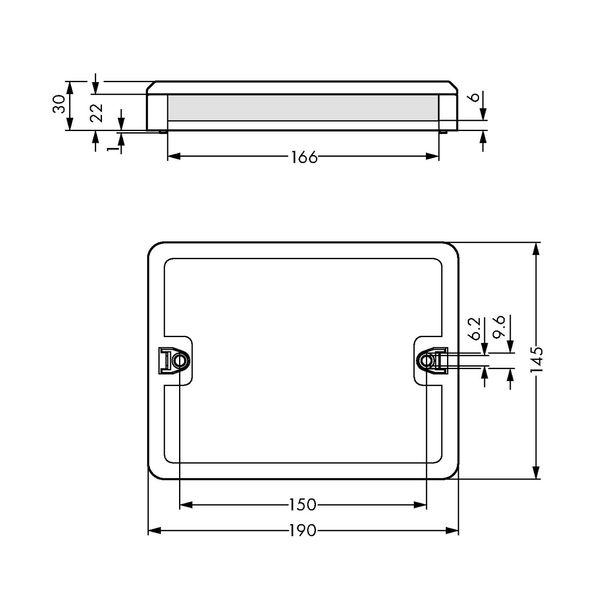

| Width | 145 mm |
| Halogen free | Yes |
| Height | 30 mm |
| Length | 190 mm |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Continuity resistor | 1 mOhm |
| Colour coding/contact insert | Multi-coloured |
| Colour of the separate adapter piece | Without adapter piece |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
Description
Distribution box Two-way circuit 1 input 5 outputs Cod. A, S MIDI black
