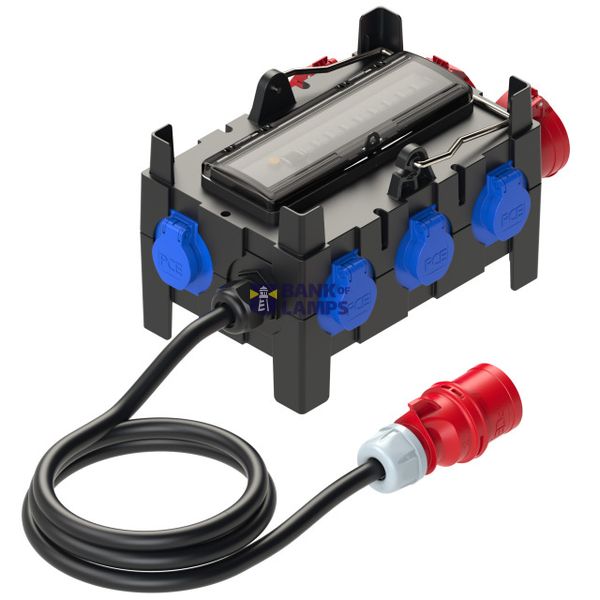

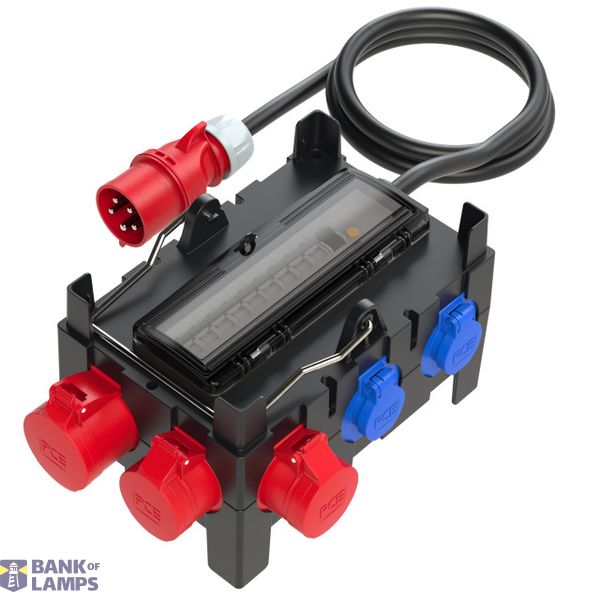

Distribution box plastic mobile ISCHL BV 32/5 2x16/5 6xSSD 2m5G6St32 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ISCHL BV 32/5 2x16/5 6xSSD 2m5G6St32 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399391576

Other Technical data

Colour	Black
Width	300 mm
Height	200 mm
Depth	200 mm
Number of socket outlets with protective contact (type F)	6
Cable length	2 m
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	5
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

Kunstst.-Mobilverteiler Modell ISCHL IP44 200x300x200 13TE
2m Kabel H07RN-F 5G6mm2 schwarz mit Stecker 32A 5p 400V
1xCEE-Steckdose 32A 5p 400V abgesichert d. Vorsicherung Zuleitung
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 2xLS 16A 3p C
6xSK-Steckdose 16A 250V IP54 abgesichert über 3xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler betriebsfertig angeschlossen
