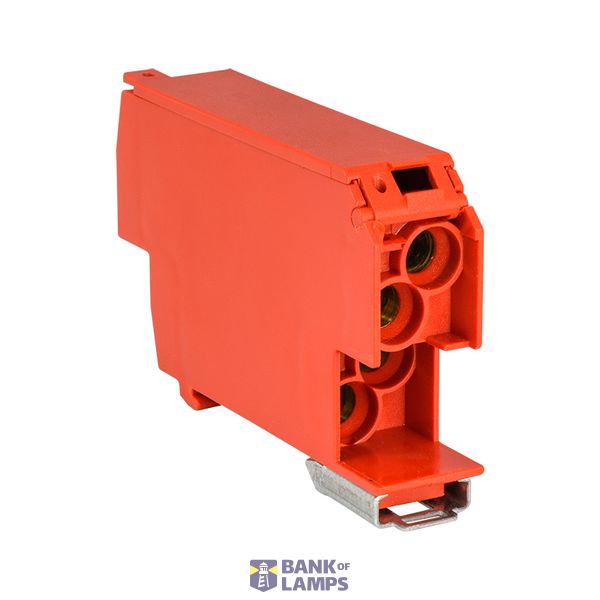

Distribution block SDB-25/CZE
Order only
EAN: 5901769011960
MPN: 48.928
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | Distribution block SDB-25/CZE |
| Brand | Elektro-Plast |
| Categories |
Busbar Systems & Accessories
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000275 |
| Nominal current | 100 A |
| Number of poles | 1 |
| Suitable for solid conductors | Yes |
Packing details
| Packing level 1 | 5901769011960 |
Other Technical data

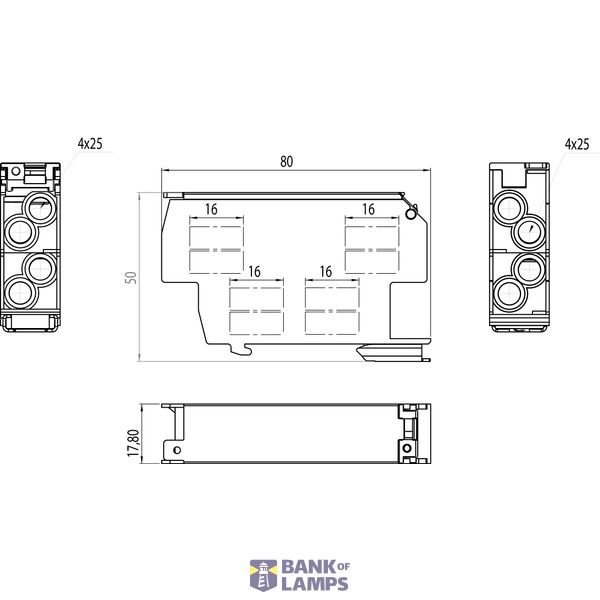

| Mounting method | DIN rail |
| Width | 17.8 mm |
| Height | 80 mm |
| Depth | 50 mm |
| Connection type | Screwing |
| Number of inputs | 4 |
| Number of outputs | 4 |
| Contact safe | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 25-- mm² |
| Conductor cross section, output | 25-- mm² |
Description
Blocks for use in electrical connections in low-voltage switchboards. Threaded clamping elements. Untreated wire terminations or flexible wires terminated with ferrules.
