Distribution block LK70/50-1P N
Order only
EAN: 5901769019157
MPN: 48.70501
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | Distribution block LK70/50-1P N |
| Brand | Elektro-Plast |
| Categories |
Busbar Systems & Accessories
|
| ETIM | EC000275 |
| Nominal current | 192 A |
| Number of poles | 1 |
| Suitable for solid conductors | Yes |
Packing details
| Packing level 1 | 5901769019157 |
Other Technical data

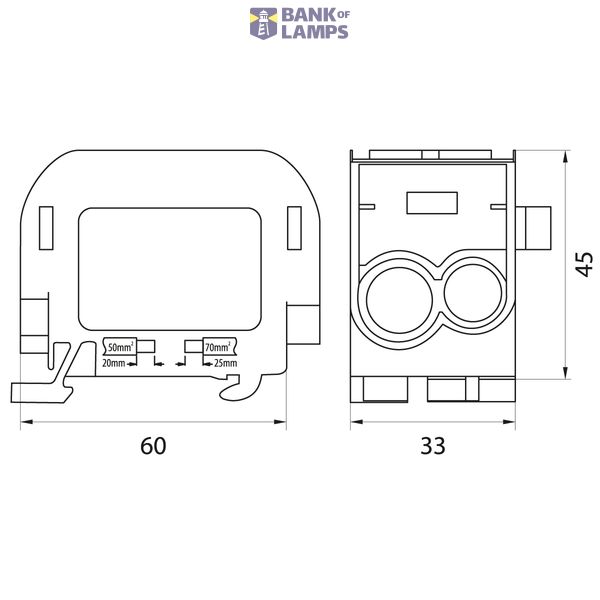

| Mounting method | DIN rail |
| Width | 33 mm |
| Height | 60 mm |
| Depth | 45 mm |
| Connection type | Screwing |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Contact safe | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for stranded conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 10-70 mm² |
| Conductor cross section, output | 6-50 mm² |
| Conductor cross section, input AWG | 10-70 mm² |
| Conductor cross section, output AWG | 6-50 mm² |
Description
LK Distribution Blocks with tin-plated brass inserts, suitable for mounting on Eurorail (TH35). They feature double-row screw terminals with color-coded protective covers. The modular system allows for interconnection of blocks. Designed for Al/Cu conductors. Voltage: 1000V AC/DC, Current: 192A Al, 300A Cu.
