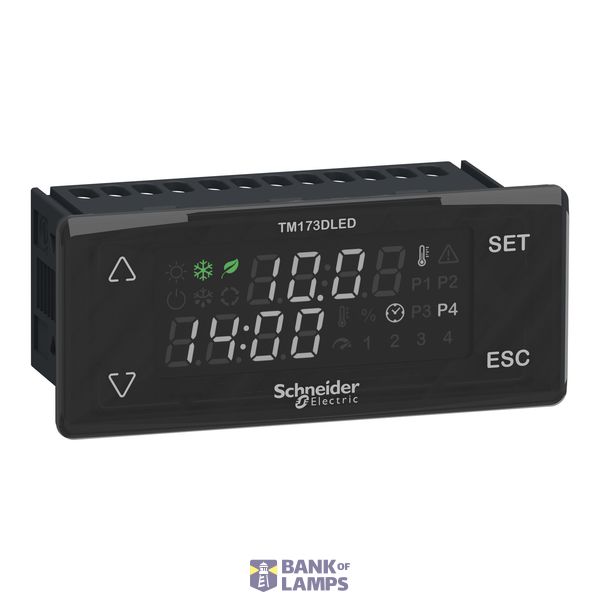

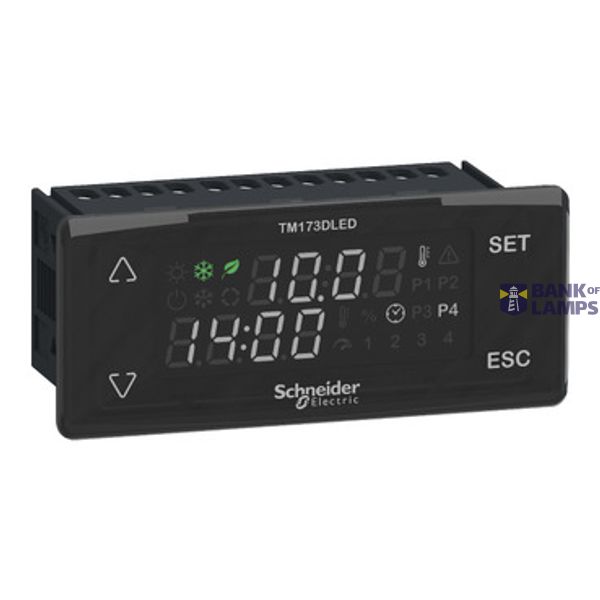

M173 remote display

Order only

Price (excl. VAT):

79,94 €

This price is valid until next price list or while stock lasts

EAN: 3606487045540

MPN: TM173DLED

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	M173 remote display
Brand	Schneider Electric
Categories	HMI-Panels & Bediengeräte
Country of origin*	IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8531 2020 90
ETIM	EC001412
Operating temperature	-20-65 °C
Voltage type of supply voltage	AC/DC
Degree of protection (IP), front side	IP20
Supply voltage AC 50 Hz	24 V
Supply voltage AC 60 Hz	24 V
Supply voltage DC	24 V
Degree of protection (NEMA), front side	Other

Packing details

Packing level 1

3606487045540, 3606487045540

Other Technical data

Built-in depth	34.6 mm
Suitable for safety functions	No
Screen diagonal	2.185 inch
Supporting protocol for LON	No
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	1
Supporting protocol for TCP/IP	No
Supporting protocol for ASI	No
Supporting protocol for PROFIBUS	No
Supporting protocol for CAN	No
Supporting protocol for INTERBUS	No
Supporting protocol for KNX	No
Supporting protocol for Modbus	No
Supporting protocol for Data-Highway	No
Supporting protocol for DeviceNet	No
Supporting protocol for SUCONET	No
Supporting protocol for other bus systems	No
With colour display	Yes
Number of colours of the display	1
Number of function buttons, programmable	0
With numeric keyboard	No
With alpha numeric keyboard	No
Useful project memory/user memory	0 kByte
With message indication	No
With message system (incl. buffer and confirmation)	No
Process value representation (output) possible	Yes
Process default value (input) possible	Yes
With recipes	No
Number of password levels	0
With printer output	No
Number of online languages	1
Additional software components, loadable	No
With SW interfaces	No
Width of the front	34.5 mm
Height of the front	80.5 mm
Rail mounting possible	No
Supporting protocol for SERCOS	No
Supporting protocol for INTERBUS-Safety	No
Number of interfaces PROFINET	0
Number of HW-interfaces Wireless	0
Wall mounting/direct mounting	Yes
Radio standard Bluetooth	No
Radio standard Wi-Fi 802.11	No
IO link master	No
Supporting protocol for AS-Interface Safety at Work	No
Supporting protocol for DeviceNet Safety	No
Supporting protocol for EtherNet/IP	No
Supporting protocol for Foundation Fieldbus	No
Supporting protocol for PROFINET CBA	No
Supporting protocol for PROFINET IO	No
Supporting protocol for PROFIsafe	No
Supporting protocol for SafetyBUS p	No
Type of display	Other
Radio standard GPRS	No
Radio standard GSM	No
Radio standard UMTS	No
Number of buttons with LED	0
Number of system buttons	4
Touch technology	None

Downloads

Deep link REACH Mounting instruction Others Declaration EPD (Environmental Product Declaration) Declaration RoHS

Description

Deze afstandsbediening maakt deel uit van het Modicon M171/M172/M173 gamma, een bedieningsaanbod voor HVAC/Pumping-toepassingen. Dit display op afstand is ontworpen voor M173 geoptimaliseerde logische controllers. Het is een LED-display, met één Propriotary LAN-buspoort voor verbinding met de controller. Het biedt inzicht op afstand en controle van de te bewaken informatie. Het wordt aangedreven door de controller Het heeft een toetsenbord met 4 knoppen. Het is 74mm breed, 30mm diep, 32mm hoog en weegt 0.120kg. Dit display op afstand is ontworpen voor HVAC- en pompcontrollers. Het is gecertificeerd door CE, cURus (UL Erkend), CSA, EAC, RCM, RoHS China en UKCA. Deze is compatibel met elke TM173O DIN-versie. Het wordt verkocht in een 1-delig pakket Het is ontworpen voor paneelmontage. Modicon M171/M172/M173-controllers zijn ontworpen voor volledige automatiseringsoplossingen voor HVAC- en pompmachines. Het modicon M171/M172/M173-gamma is bedoeld voor OEM's en helpt om de winstgevendheid
