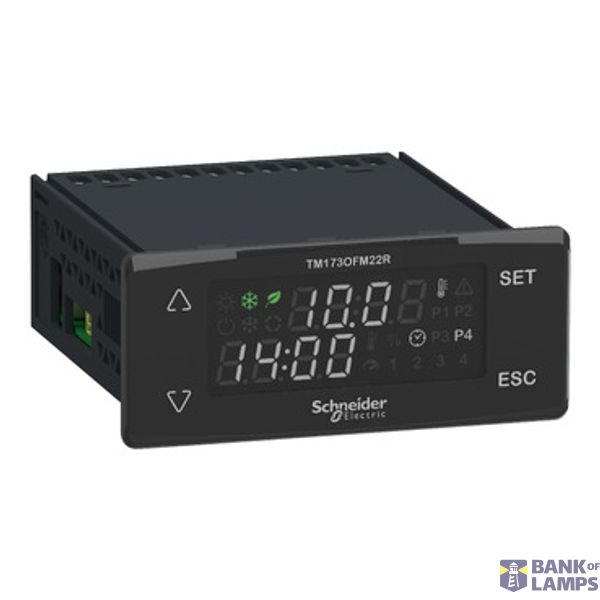

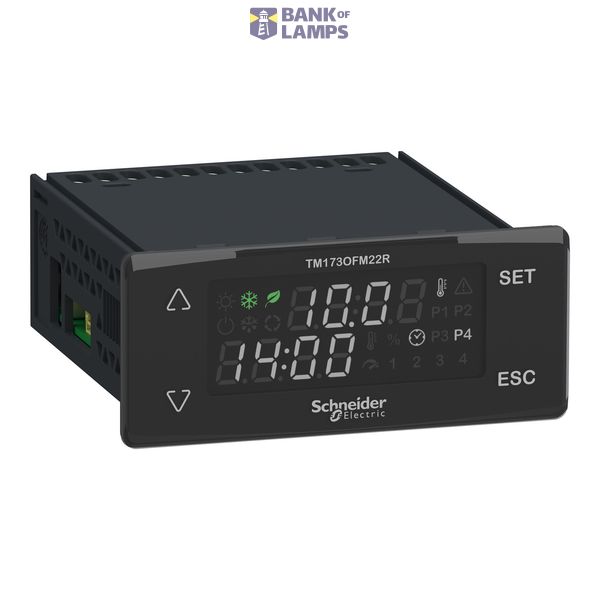

M173 Opt. FLUSH MOUNTING, 22 IOs, 2RS485
Order only
Price (excl. VAT):
291,59 €
EAN: 3606487045571
MPN: TM173OFM22R
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | M173 Opt. FLUSH MOUNTING, 22 IOs, 2RS485 |
| Brand | Schneider Electric |
| Categories |
SPS-Steuerungen & E/A-Module
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1091 99 |
| ETIM | EC000236 |
| Model | Compact |
| Number of digital inputs | 6 |
| Number of digital outputs | 5 |
| Number of analogue inputs | 7 |
| Number of analogue outputs | 4 |
| Voltage type of supply voltage | AC/DC |
| Memory size | 1024 kByte |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces other | 0 |
| Additional program memory possible | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supply voltage AC 50 Hz | 24 V |
| Supply voltage AC 60 Hz | 24 V |
| Supply voltage DC | 24 V |
Packing details
| Packing level 1 | 3606487045571, 3606487045571 |
Other Technical data
| Width | 80.5 mm |
| Height | 34.5 mm |
| Depth | 82.7 mm |
| With display | Yes |
| Suitable for safety functions | No |
| Type of memory | Other |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for other bus systems | No |
| Redundancy | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Number of relay outputs | 5 |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Long-Term Evolution (LTE) | No |
| SIL according to IEC 61508 | None |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for DNP3 | No |
| Supporting protocol for IEC 60870 | No |
Downloads
Declaration RoHS
Mounting instruction
Deep link REACH
Others
Declaration EPD (Environmental Product Declaration)
Description
Deze logische controller maakt deel uit van het Modicon M171/M172/M173-gamma, een controleaanbod voor HVAC/Pumping-toepassingen. Deze controller omvat 6 digitale ingangen, 7 analoge ingangen, 5 digitale uitgangen en 4 analoge uitgangen. Het omvat 2 communicatiepoorten voor RS-485 en één 1 USB-C buspoort en heeft een ingebouwd display. Deze programmeerbare logische controller is ontworpen om warmtepompen/koelers (tot twee circuits), AHU, proceskoelers, pompen en boilers/verwarmingen te besturen. DI's zijn spanningsvrij en pulsleesbaar (tot 2kHz), en AI's zijn NTC (b3435 - 10kW), pt1000, 4-20mA, 0-10V, 5V en 10V. DO's zijn relais 5A SPST en AO's zijn 0-10V/4-20mA, 0-10 V/PWM (10Hz tot 2kHz). Het is 74mm breed, 60mm diep, 32mm hoog en weegt 0.157kg. Deze controller is ontworpen voor HVAC- en pomptoepassingen. Het is gecertificeerd door CE, cURus (UL Erkend), CSA, EAC, RCM, RoHS China en UKCA. Het is compatibel met externe schermen, IO-uitbreidingsmodules en veilige interfaces. Het wordt
