DC/DC Converter 24 VDC input voltage 5/10/12 VDC adjustable output vol
Order only
Price (excl. VAT):
53,80 €
EAN: 4055143440745
MPN: 787-2810
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | DC/DC Converter 24 VDC input voltage 5/10/12 VDC adjustable output vol |
| Brand | WAGO |
| Categories |
AC/DC Power Supply Units
|
| Country of origin | DE |
| Harmonized System Code | 8504 4082 00 |
| Width | 6 mm |
| Height | 96 mm |
| Depth | 94 mm |
| Voltage type of supply voltage | DC |
| Rail mounting possible | Yes |
| Wall mounting possible | No |
| 1st secondary output voltage | 5 V |
| Max. output current 1 | 0.5 A |
| Nominal value output current 1 | 0.5 A |
Packing details
| Packing level 1 | 4055143440745 |
Other Technical data
| Modular version | Yes |
| Suitable for safety functions | No |
| Width in number of modular spacings | 0.33 |
| Output voltage stabilized | Yes |
| Type of electric connection | Spring clamp connection |
| Stabilized | No |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | No |
| 2nd secondary output voltage | 10 V |
| 3rd secondary output voltage | 12 V |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at DC | 15-30 V |
| Short-circuit-proof | Yes |
| Nominal value output voltage 1 | 5 V |
| Nominal value output voltage 2 | 10 V |
| Nominal value output voltage 3 | 12 V |
Description

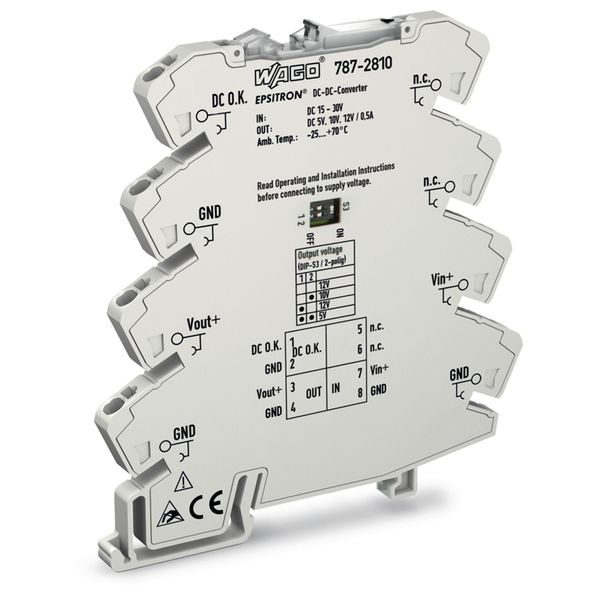

DC/DC Converter 24 VDC input voltage 5/10/12 VDC adjustable output voltage 0.5 A output current DC OK contact
