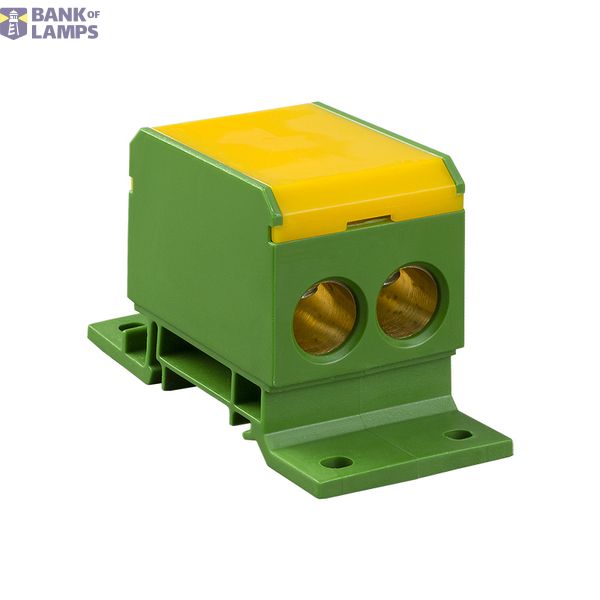

DB4-Z Distribution Block
Order only
EAN: 5901769011489
MPN: 48.35
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | DB4-Z Distribution Block |
| Brand | Elektro-Plast |
| Categories |
Busbar Systems & Accessories
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000275 |
| Nominal current | 160 A |
| Number of poles | 1 |
| Suitable for solid conductors | Yes |
Packing details
| Packing level 1 | 5901769011489 |
Other Technical data
| Mounting method | DIN-rail/screw |

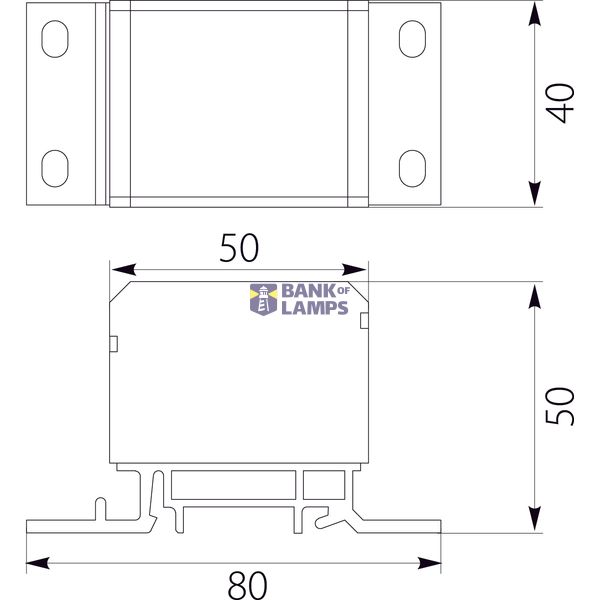

| Width | 40 mm |
| Height | 50 mm |
| Depth | 80 mm |
| Connection type | Screwing |
| Number of inputs | 2 |
| Number of outputs | 2 |
| Contact safe | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 4-70 mm² |
| Conductor cross section, output | 4-70 mm² |
| Conductor cross section, input AWG | - mm² |
| Conductor cross section, output AWG | - mm² |
Description
Blocks for use in electrical connections in low-voltage distribution boxes. Threaded clamping elements. Unworked cable ends or flexible wires with sleeves. Locks for use in electrical connections in low-voltage distribution boxes. Clamping threaded elements. Unworked cable ends or flexible wires with sleeves at the ends.
