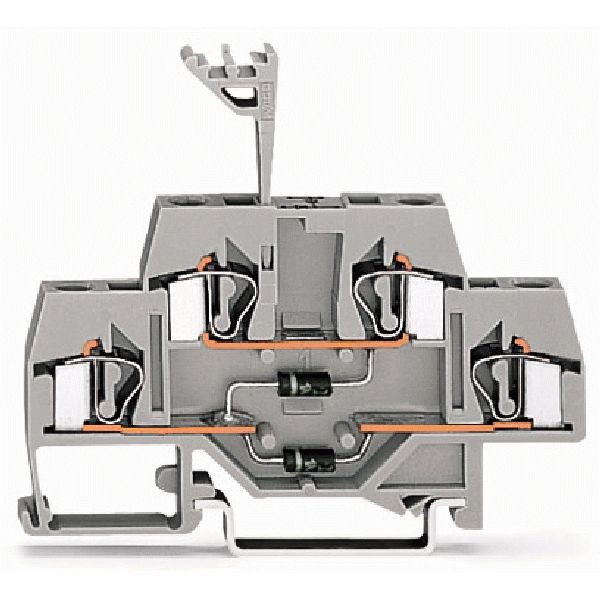

Component terminal block double-deck with 2 diodes 1N4007 gray image 1
Component terminal block double-deck with 2 diodes 1N4007 gray image 2
Component terminal block double-deck with 2 diodes 1N4007 gray image 3
Component terminal block double-deck with 2 diodes 1N4007 gray image 4
Component terminal block double-deck with 2 diodes 1N4007 gray thumbnail 1
Component terminal block double-deck with 2 diodes 1N4007 gray thumbnail 2
Component terminal block double-deck with 2 diodes 1N4007 gray thumbnail 3
Component terminal block double-deck with 2 diodes 1N4007 gray thumbnail 4
WAGO

Component terminal block double-deck with 2 diodes 1N4007 gray

In stock: No Vendor stock: No Minimal order quantity: 50
Price (excl. VAT):
6,83 €
This price is valid until 24.12.25
Subtotal: 341,50 € MOQ: 50
EAN: 4045454197322
MPN: 281-635/281-491
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Component terminal block double-deck with 2 diodes 1N4007 gray
Brand WAGO
Categories DIN Rail Terminal Blocks
Country of origin DE
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Width 6 mm
Height 73.5 mm
Depth 58.5 mm
Rated voltage 250 V
Operating temperature 105 °C
Closing plate required Yes
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Number of levels 2
Number of clamp positions per level 2
Internally connected stages No
Connectable conductor cross section solid-core 0.08-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.25-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-4 mm²
Connectable conductor cross section multi-wired 0.08-4 mm²
Material insulation body Thermoplastic
Rated current In 0.5 A

Packing details

Packing level 1 4045454197322
Packing level 2 4045454197322

Other Technical data

Inflammability class of insulation material according to with UL94 V0
Type of component Diode
Explosion-tested version 'Ex e' No

Description

Component terminal block double-deck with 2 diodes 1N4007 Top anode, right-side anode for DIN-rail 35 x 15 and 35 x 7.5 4 mm² CAGE CLAMP® 4,00
