WAGO

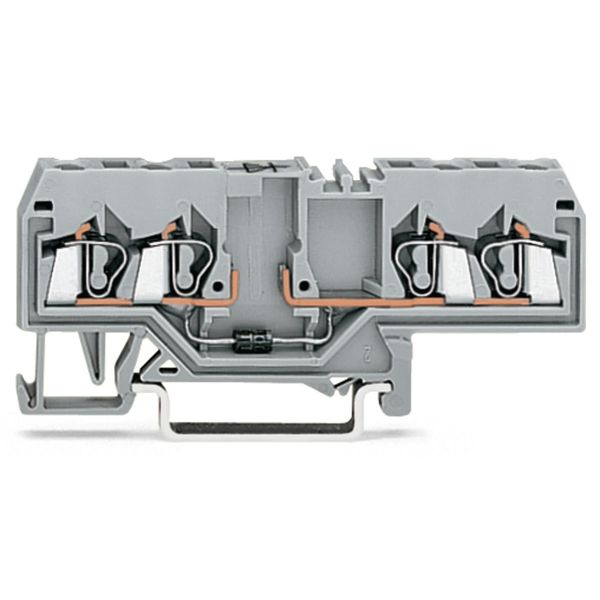

Component terminal block 4-conductor with diode 1N4007 gray

Order only Minimal order quantity: 100
Price (excl. VAT):
2,73 €
This price is valid until 24.12.26
Subtotal: 273,00 € MOQ: 100
EAN: 4050821275442
MPN: 280-655/281-411
Package: 1
Box: 100
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Component terminal block 4-conductor with diode 1N4007 gray
Brand WAGO
Categories DIN Rail Terminal Blocks
Country of origin* CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Width 5 mm
Height 75 mm
Depth 28 mm
Rated voltage 250 V
Operating temperature 105 °C
Closing plate required Yes
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Number of levels 1
Number of clamp positions per level 4
Internally connected stages No
Connectable conductor cross section solid-core 0.08-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-2.5 mm²
Connectable conductor cross section multi-wired 0.08-2.5 mm²
Material insulation body Thermoplastic
Rated current In 0.5 A

Packing details

Packing level 1 4050821275442
Packing level 2 4050821275442

Other Technical data

Inflammability class of insulation material according to with UL94 V0
Type of component Diode
Explosion-tested version 'Ex e' No

Description

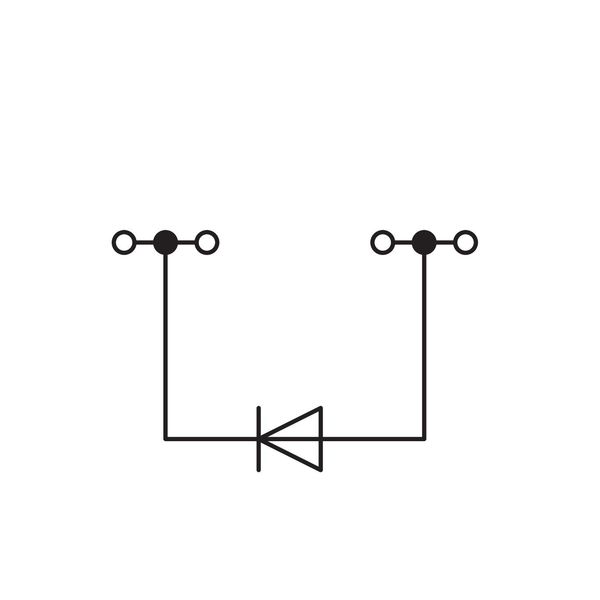

Component terminal block 4-conductor with diode 1N4007 anode, right side for DIN-rail 35 x 15 and 35 x 7.5 2.5 mm² CAGE CLAMP® 2,50 mm² gray
