WAGO

Component module with fuse for (5 x 20) mm microfuse Nominal voltage:

Order only
Price (excl. VAT):
24,38 €
This price is valid until 24.12.25
EAN: 4045454376451
MPN: 286-890
Package: 1
Box: 25
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Component module with fuse for (5 x 20) mm microfuse Nominal voltage:
Brand WAGO
Categories DIN Rail Terminal Blocks
Country of origin DE
Harmonized System Code 8536 3010 00
Mounting method DIN rail (top hat rail) 35 mm
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Type of fuse insert G-fuse 5x20 mm
Type of fuse holder Pluggable
Type of indication element for defect indication LED
Supply voltage for defect-indication 24 V
Number of levels 1
Voltage type for defect indication AC/DC
Connectable conductor cross section solid-core 0.08-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-2.5 mm²
Connectable conductor cross section multi-wired 0.08-2.5 mm²

Packing details

Packing level 1 4045454376451
Packing level 2 4045454376451

Other Technical data

Colour Grey
Width 10 mm
Height 50 mm
Depth 70.2 mm
Operating temperature 105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Material insulation body Thermoplastic

Description

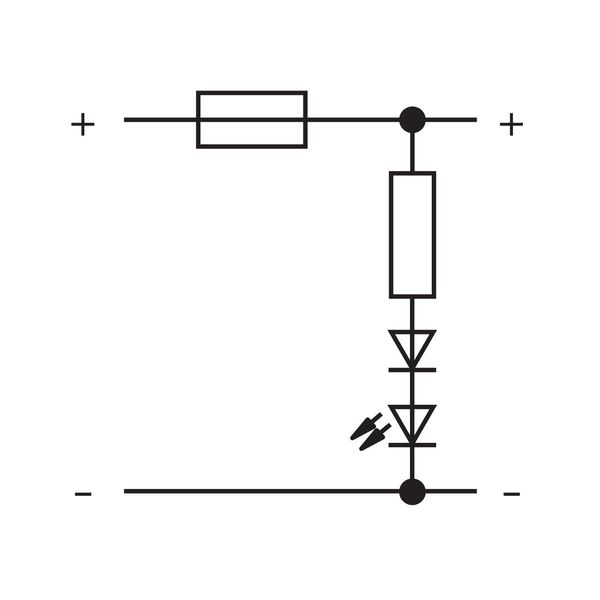

Component module with fuse for (5 x 20) mm microfuse Nominal voltage: 24 VAC/DC gray
