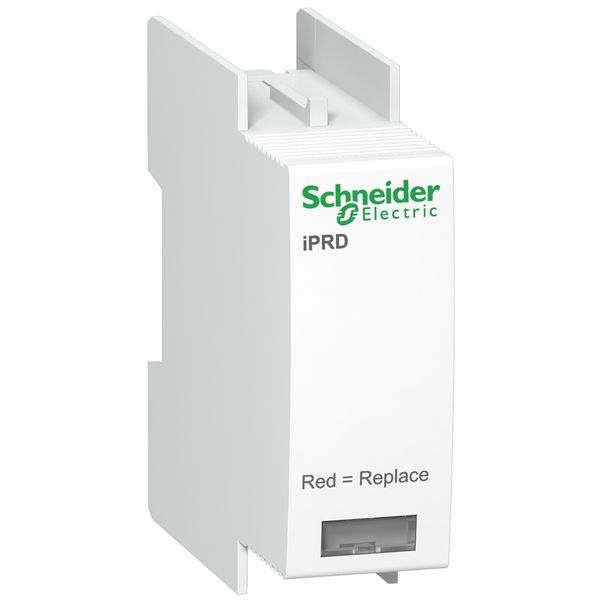

***CARTRIDGE C20 350 FOR D SURGE ARRESTE

Name: ***CARTRIDGE C20 350 FOR D SURGE ARRESTE
Brand: Schneider Electric
Price: 26.110 EUR
Availability: InStock

In stock: Yes Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

26,11 €

This price is valid until 31.12.25 or while stock lasts

EAN: 3606480506611

MPN: A9L20102

Package: 1

Box: 12

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	***CARTRIDGE C20 350 FOR D SURGE ARRESTE
Brand	Schneider Electric
Categories	Surge Protection Devices (SPD)
Country of origin	CN
Harmonized System Code	8536 3090 00
Voltage protection level	1.2 kV
Nominal discharge surge current (8/20)	5 kA
Nominal voltage AC	230 V
Nominal voltage DC	0 V
Voltage protection level L-N	0 kV
Degree of protection (IP)	IP20
Max. PV-voltage	0 V
System configuration DC	No
System configuration IT	No
System configuration TN	Yes
System configuration TN-C-S	No

Mounting method	On basic element
With remote signalling contact	No
Number of conductors (without earthing)	0
Construction size	1 modular spacing
Max. continuous voltage AC	350 V
Category type 2	Yes
Signalling at the device	Optic
Max. continuous voltage DC	0 V
Voltage protection level N-PE	0 kV
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	0 mm²
Max. conductor cross section flexible (fine-strand)	0 mm²
System configuration TN-C	No
System configuration TN-S	No
System configuration TT	Yes
System configuration other	No
Max. discharge surge current (8/20)	20 kA
Short-circuit breaking capacity (Isccr)	0 kA
Max. overcurrent protection device, parallel connection (fuse)	0 A
Max. overcurrent protection device, series connection (fuse)	0 A
Integrated short-circuit protection	No
Integrated short-circuit protection selective to fuse gG	0 A
Leakage-current free	No

Declaration EPD (Environmental Product Declaration) Mounting instruction
