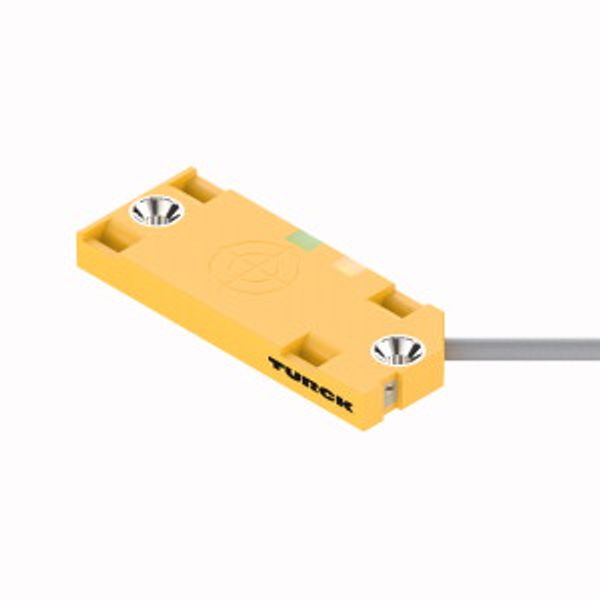

Capacitive Sensor BC5-QF5.5-Y1X/S250
Order only
Price (excl. VAT):
88,13 €
EAN: 4047101149241
MPN: 2030000
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Capacitive Sensor BC5-QF5.5-Y1X/S250 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Switching distance | 5 mm |
| Type of electric connection | Cable |
| Type of switching output | NAMUR |
| Construction type housing | Cuboid |
| Supply voltage | 8.2 V |
| Type of interface | Other |

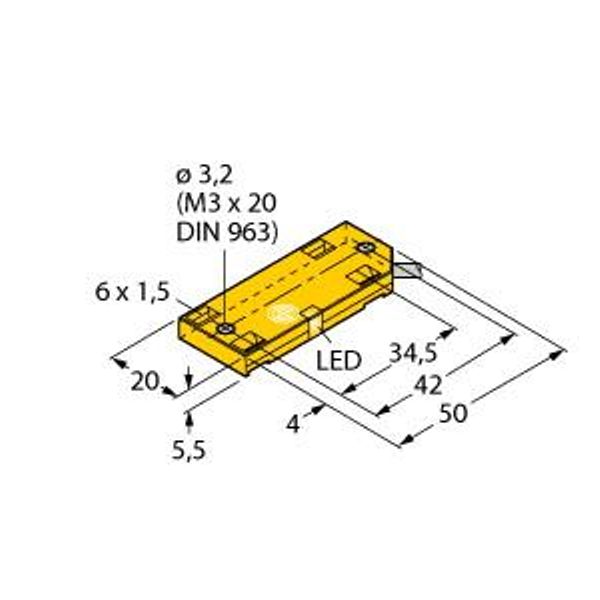

| Width sensor | 20.3 mm |
| Height of sensor | 5.5 mm |
| Length of sensor | 54 mm |
| SIL according to IEC 61508 | 2 |
Packing details
| Packing level 1 | 4047101149241, 4047101149241 |
Other Technical data
| Cascadable | No |
| Switching frequency | 100 Hz |
| Type of interface for safety communication | Other |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 1G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| Max. output current at protected output | 2.1 mA |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
Downloads
Description
Capacitieve sensor, Nominale schakelafstand 5 mm, Bondig, Rechthoekig, hoogte 5,5 mm, Groot actief vlak, gemarkeerd voor correcte inbouw, Kunststof, PP, vaste instelling, DC 2‐draads, nom. 8,2 VDC, uitgang volgens DIN EN 60947-5-6 (NAMUR), kabelaansluiting, ATEX-categorie II 1 G, Ex-zone 0, ATEX-categorie II 1 D, Ex-zone 20, SIL2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
