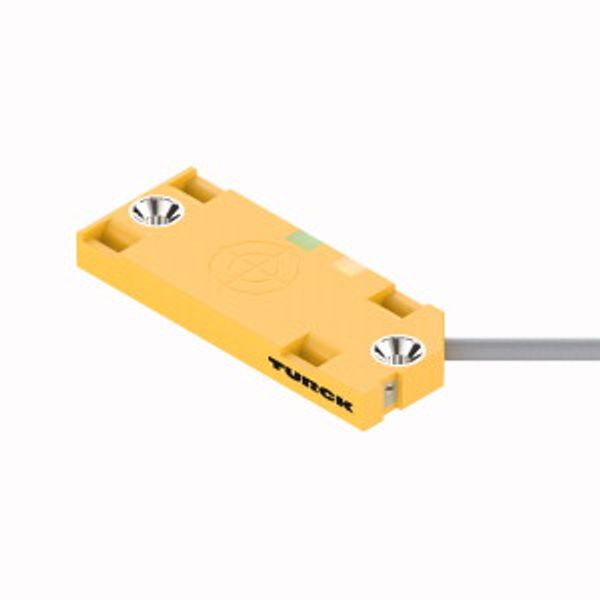

Capacitive Sensor BC5-QF5.5-AP6X2-2-RS4/S250/3G
Order Only
Minimal order quantity: 1
Price (excl. VAT):
150,81 €
EAN: 4047101149630
MPN: 2620135
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Capacitive Sensor BC5-QF5.5-AP6X2-2-RS4/S250/3G |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Switching distance | 5 mm |
| Type of electric connection | Plug-in connection |
| Type of switching output | PNP |
| Type of switch function | Normally open contact |
| Rated control supply voltage at DC | 10 V |
| Construction type housing | Cuboid |
| Supply voltage | 10 V |
| Type of interface | Other |

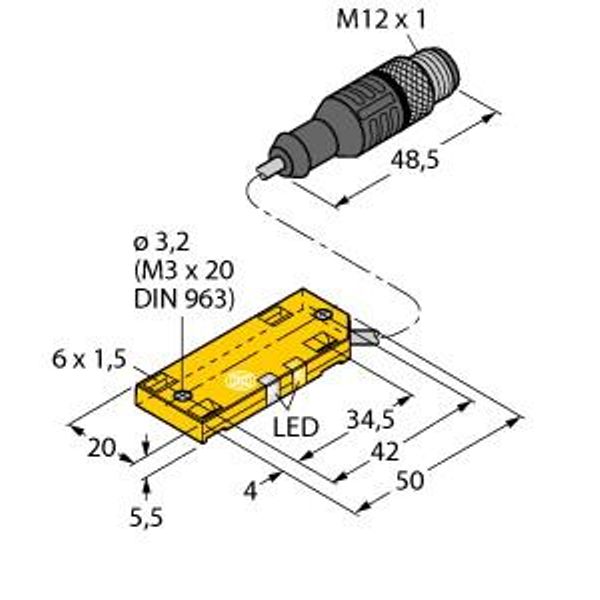

| Width sensor | 20.3 mm |
| Height of sensor | 5.5 mm |
| Length of sensor | 54 mm |
Packing details
| Packing level 1 | 4047101149630, 4047101149630 |
Other Technical data
| Cascadable | No |
| Switching frequency | 100 Hz |
| Type of interface for safety communication | None |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | Other |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
Downloads
Description
Capacitieve sensor, Nominale schakelafstand 5 mm, Bondig, Kabellengte 2 m, Rechthoekig, hoogte 5,5 mm, Groot actief vlak, gemarkeerd voor correcte inbouw, Kunststof, PP, vaste instelling, DC 3‐draads, 10…30 V DC, N.O., PNP-uitgang, Connector, M12 × 1, ATEX categorie II 3 G, Ex zone 2
