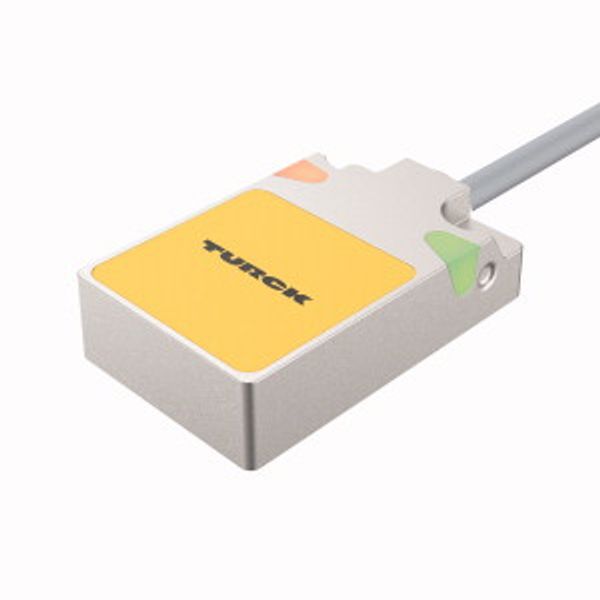

Capacitive Sensor BC5-Q08-AN6X2/S250
Order only
Price (excl. VAT):
128,98 €
EAN: 4047101149302
MPN: 26201
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Capacitive Sensor BC5-Q08-AN6X2/S250 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Metal |
| Suitable for safety functions | No |
| Switching distance | 5 mm |
| Type of electric connection | Cable |
| Type of switching output | NPN |
| Type of switch function | Normally open contact |
| Rated control supply voltage at DC | 10 V |
| Construction type housing | Cuboid |
| Supply voltage | 10 V |
| Type of interface | Other |
| Width sensor | 20 mm |
| Height of sensor | 8 mm |
| Length of sensor | 32 mm |
Packing details
| Packing level 1 | 4047101149302, 4047101149302 |
Other Technical data
| Cascadable | No |
| Coating housing | Nickel-plated |
| Switching frequency | 100 Hz |
| Type of interface for safety communication | None |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
Downloads
Description
Capacitieve sensor, Nominale schakelafstand 5 mm, Bondig, Kabellengte 2 m, Rechthoekig, hoogte 8 mm, Actief vlak bovenaan, Metaal, Zamac vernikkeld, vaste instelling, DC 3‐draads, 10…30 V DC, N.O., NPN-uitgang, Kabelaansluiting
