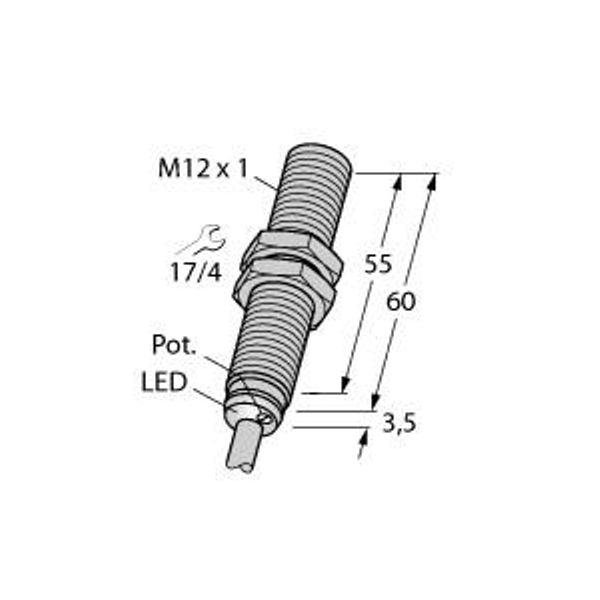

Capacitive Sensor BC3-M12-AP6X/S90/3GD
Order Only
Minimal order quantity: 1
Price (excl. VAT):
193,60 €
EAN: 4047101090383
MPN: 2601003
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Capacitive Sensor BC3-M12-AP6X/S90/3GD |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Metal |
| Suitable for safety functions | No |
| Switching distance | 3 mm |
| Type of electric connection | Cable |
| Type of switching output | PNP |
| Type of switch function | Normally open contact |
| Rated control supply voltage at DC | 10 V |
| Construction type housing | Cylinder, screw-thread |
| Supply voltage | 10 V |
| Type of interface | Other |
| Diameter sensor | 12 mm |
| Length of sensor | 63.5 mm |
Packing details
| Packing level 1 | 4047101090383, 4047101090383 |
Other Technical data
| Cascadable | No |
| Coating housing | Chromium-plated |
| Switching frequency | 100 Hz |
| Type of interface for safety communication | None |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 3D |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
Downloads
Description
Capacitieve sensor, Nominale schakelafstand 3 mm, Bondig, Kabellengte 2 m, schroefdraad, M12 x 1, messing verchroomd, Nauwkeurige instelling d.m.v. potentiometer, DC 3‐draads, 10…30 V DC, N.O., PNP-uitgang, Kabelaansluiting, ATEX categorie II 3 G, Ex zone 2, ATEX categorie II 3 D, Ex zone 22
