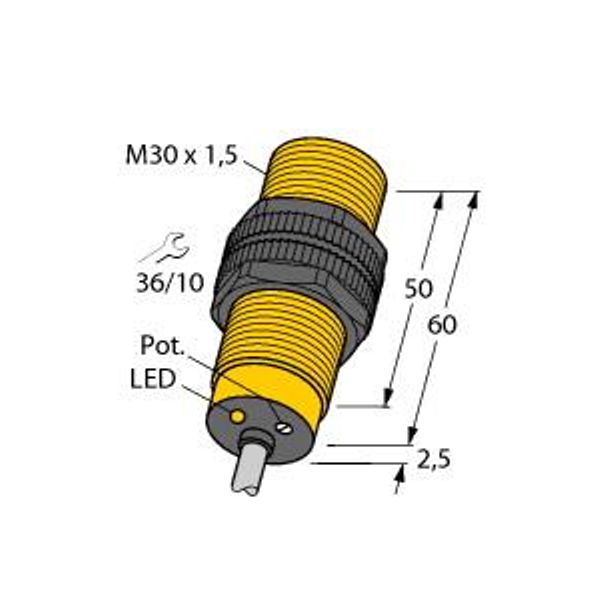

Capacitive Sensor BC10-S30-Y1X/S90
Order only
Price (excl. VAT):
147,25 €
EAN: 4047101245028
MPN: 2010023
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Capacitive Sensor BC10-S30-Y1X/S90 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Switching distance | 15 mm |
| Type of electric connection | Cable |
| Type of switching output | NAMUR |
| Construction type housing | Cylinder, screw-thread |
| Supply voltage | 8.2 V |
| Type of interface | Other |
| Diameter sensor | 30 mm |
| Length of sensor | 62.5 mm |
| SIL according to IEC 61508 | 2 |
Packing details
| Packing level 1 | 4047101245028, 4047101245028 |
Other Technical data
| Cascadable | No |
| Switching frequency | 100 Hz |
| Type of interface for safety communication | Other |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 2G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| Max. output current at protected output | 2.1 mA |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
Downloads
Description
Capacitieve sensor, Nominale schakelafstand 15 mm, Bondig, Kabellengte 2 m, schroefdraad, M30 x 1,5, kunststof, PA12‐GF30, Nauwkeurige instelling d.m.v. potentiometer, DC 2‐draads, nom. 8,2 VDC, uitgang volgens DIN EN 60947-5-6 (NAMUR), kabelaansluiting, ATEX-categorie II 2 G, Ex-zone 1, ATEX-categorie II 1 D, Ex-zone 20, SIL 2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL 3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
