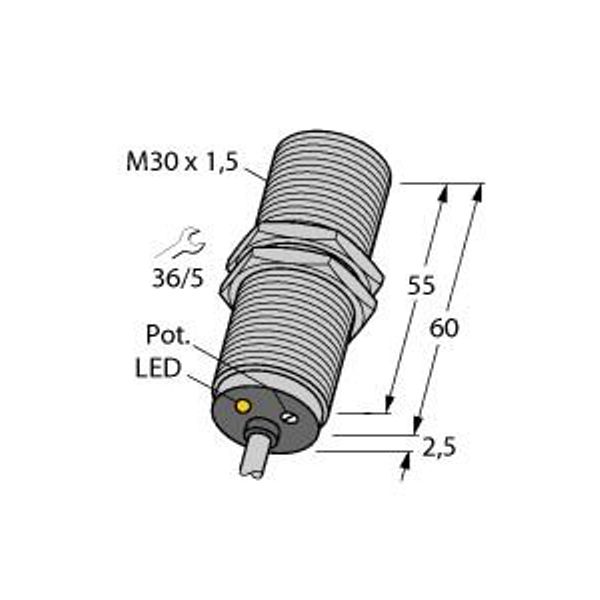

Capacitive Sensor BC10-M30K-RZ3X
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
236,32 €
EAN: 4047101202069
MPN: 2503025
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Capacitive Sensor BC10-M30K-RZ3X |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | AC |
| Housing material | Metal |
| Suitable for safety functions | No |
| Switching distance | 10 mm |
| Type of electric connection | Cable |
| Type of switch function | Breaker contact |
| Construction type housing | Cylinder, screw-thread |
| Supply voltage | 20 V |
| Type of interface | Other |
| Diameter sensor | 30 mm |
| Length of sensor | 62.5 mm |
Packing details
| Packing level 1 | 4047101202069, 4047101202069 |
Other Technical data
| Cascadable | No |
| Coating housing | Chromium-plated |
| Switching frequency | 20 Hz |
| Type of interface for safety communication | None |
| Rated control supply voltage at AC 50 Hz | 20 V |
| Rated control supply voltage at AC 60 Hz | 20 V |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
Downloads
Description
Capacitieve sensor, Bedrijfsspanning 20…250 VAC, Nominale schakelafstand 10 mm, Bondig, Kabellengte 2 m, schroefdraad, M30 x 1,5, messing verchroomd, Nauwkeurige instelling d.m.v. potentiometer, AC 2-draads, 20…250 VAC, N.C.-contact, kabelaansluiting
