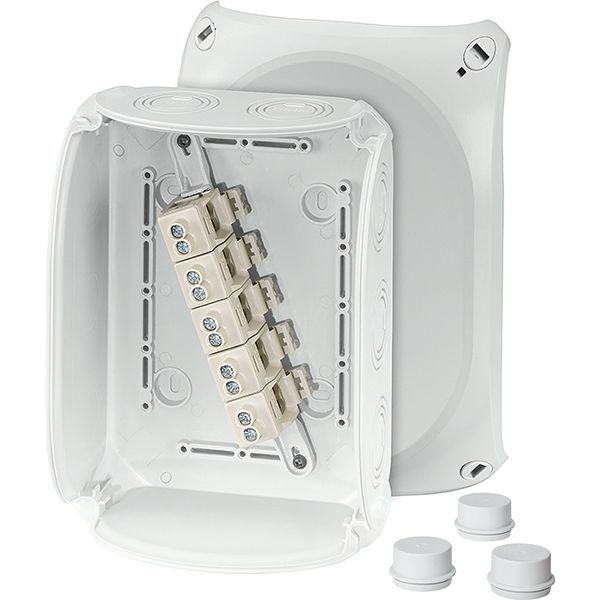

Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G) image 3
Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G) image 4
Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G) thumbnail 1
Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G) thumbnail 2
Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G) thumbnail 3
Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G) thumbnail 4
HENSEL

Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G)

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
28,65 €
This price is valid until 24.12.25
EAN: 4012591125051
MPN: 62000013
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Cable box IP66, BM5, 4-10 mm², 5 poles, input M25/32/40, Gray (DK 1610 G)
Brand HENSEL
Categories Surface Mounted Junction Boxes
Country of origin DE
Harmonized System Code 8536 9010 00
Halogen free Yes
Rated insulation voltage Ui 690 V
Sealable Yes
Max. conductor cross section 16 mm²
Weatherproof No
Degree of protection (IP) IP66
Inlet from the rear Yes

Packing details

Packing level 1 4012591125051, 4012591125051

Other Technical data

Mounting method Wall-/ceiling mounting
Colour Grey
Width 155 mm
Depth 92 mm
Shape Rectangular
Surface protection Untreated
Length 210 mm
Circuit integrity None
Operating temperature -25-40 °C
Material Plastic
Number of inlets 10
Explosion-tested version No
Cover attachment Screwed
With screening No
For tube diameter Other
For Ex-zone gas None
Tackable No
Type of housing feed-through Preembossing
For Ex-Zone dust None
Cover model Other
Castable No
With casting compound No

Downloads

Deep link REACH

Description

Kabeldoos conform IEC 60670-22, met ingebouwde aansluitingsklem en metrische uitbreekpoorten. Geschikt voor installatie binnenshuis en beschermde buitenopstelling conform DIN VDE 0100, deel 737. Voor omgevingstemperaturen van maximaal +40 °C en minimaal -25 °C, bij een relatieve luchtvochtigheid van 50% bij +40 °C of 100% bij +25 °C. Materiaal temperatuurbestendig van -25 °C tot 70 °C. Brandgedrag conform IEC 60695-2-11. Gloeidraadtest: 750 °C. UL-norm: 94 V-2. Beschermingsgraad conform IEC 60529: IP 66 met kabelwartels type ADG. Nominale isolatiespanning: 690 V. Materiaal: thermoplast, halogeen- en siliconenvrij. Kleur: grijs, RAL 7035. Dekselbevestiging met snelsluiting, afsluitbaar zonder accessoires. Merk: HENSEL ENYCASE DK. Nominale doorsnede: 2,5-10 mm², 5-polige klem, afmetingen HxBxD = 155 x 210 x 92 mm
