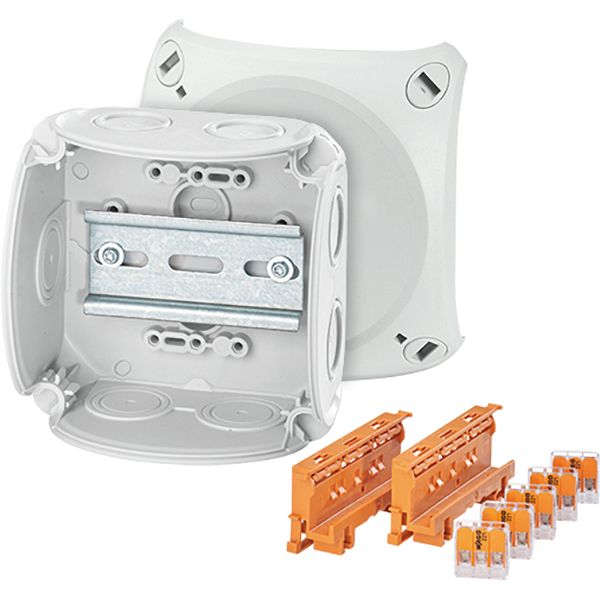

Cable box IP66, BM2, 0.75-4 mm², 5xWago, M20/25 membranes, Gray (DK 0404 W)
Order only
Price (excl. VAT):
11,11 €
EAN: 4012591129059
MPN: 62000232
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Cable box IP66, BM2, 0.75-4 mm², 5xWago, M20/25 membranes, Gray (DK 0404 W) |
| Brand | HENSEL |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Halogen free | Yes |
| Rated insulation voltage Ui | 450 V |
| Sealable | Yes |
| Max. conductor cross section | 4 mm² |
| Weatherproof | No |
| Degree of protection (IP) | IP66 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 4012591129059, 4012591129059 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | Grey |
| Width | 104 mm |
| Depth | 70 mm |
| Shape | Square |
| Surface protection | Untreated |
| Length | 104 mm |
| Circuit integrity | None |
| Operating temperature | -25-40 °C |
| Material | Plastic |
| Number of inlets | 8 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| For tube diameter | Other |
| For Ex-zone gas | None |
| Tackable | No |
| Type of housing feed-through | Other |
| For Ex-Zone dust | None |
| Cover model | Other |
| Castable | No |
| With casting compound | No |
Downloads
Description
kabeldoos conform IEC 60670-22, met vast ingebouwde verbindingsklem en verwijderbare elastische membranen. Geschikt voor installatie binnenshuis en beschermde buitenopstelling conform DIN VDE 0100, deel 737. Voor omgevingstemperaturen van maximaal +40 °C en minimaal -25 °C, bij een relatieve luchtvochtigheid van 50% bij +40 °C of 100% bij +25 °C. Materiaal temperatuurbestendig van -25 °C tot +70 °C. Brandgedrag conform IEC 60695-2-11. Gloeidraadtest 750 °C. UL-norm: 94 V-2. Beschermingsgraad conform IEC 60529: IP 66 met kabelwartels type AKM. Nominale isolatiespanning: 450 V. Materiaal: thermoplast, halogeen- en siliconenvrij. Kleur: grijs, RAL 7035. Dekselbevestiging met snelsluiting, afsluitbaar zonder accessoires. Externe insteekbeugels voor muurbevestiging inbegrepen. Merk: HENSEL ENYCASE DK. Nominale doorsnede: 4 mm², 5x 3-polige klem WAGO 221-413
