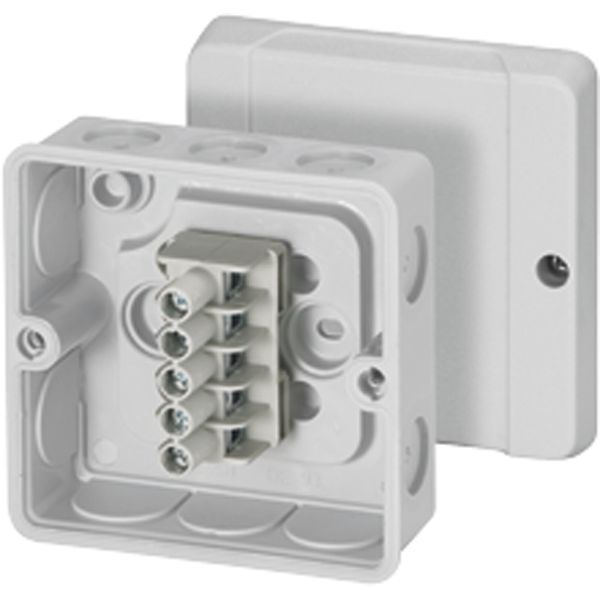

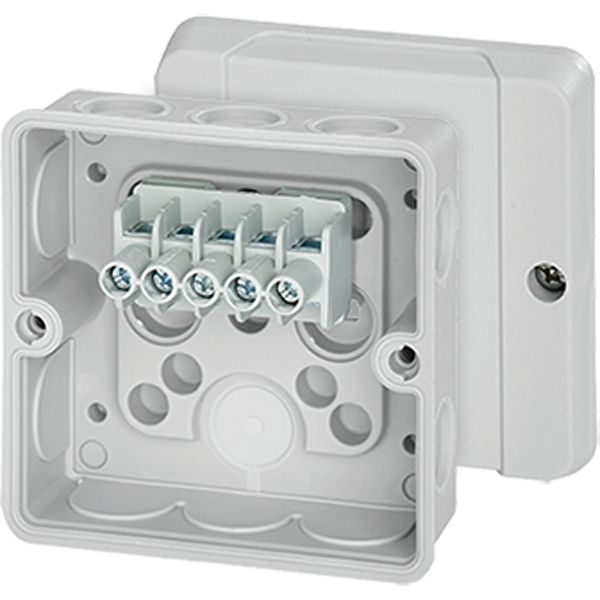

Cable box IP55, 1.5-2.5 mm², 5 pin, Gray (DE 9325)
Order only
Price (excl. VAT):
5,43 €
EAN: 4012591600442
MPN: 62000265
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Cable box IP55, 1.5-2.5 mm², 5 pin, Gray (DE 9325) |
| Brand | HENSEL |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Halogen free | Yes |
| Rated insulation voltage Ui | 690 V |
| Sealable | Yes |
| Max. conductor cross section | 4 mm² |
| Weatherproof | No |
| Degree of protection (IP) | IP55 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 4012591600442, 4012591600442 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | Grey |
| Width | 88 mm |
| Depth | 50 mm |
| Shape | Square |
| Surface protection | Untreated |
| Length | 88 mm |
| Circuit integrity | None |
| Operating temperature | -25-40 °C |
| Material | Plastic |
| Number of inlets | 11 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| For tube diameter | Other |
| For Ex-zone gas | None |
| Tackable | No |
| Type of housing feed-through | Seal membrane |
| For Ex-Zone dust | None |
| Cover model | Other |
| Castable | No |
| With casting compound | No |
Downloads
Description
Kabeldozen conform IEC 60670-22 met ingebouwde verbindingsklem en elastische membranen voor kabelinvoer. Geschikt voor installatie binnenshuis en beschermde buitenopstelling conform DIN VDE 0100, deel 737. Voor omgevingstemperaturen van maximaal +40 °C en minimaal -25 °C, bij een relatieve luchtvochtigheid van 50 % bij +40 °C of 100 % bij +25 °C. Materiaal temperatuurbestendig van -25 °C tot +70 °C. Brandgedrag conform IEC 60695-2-11. Gloeidraadtest: 750 °C. UL-norm: 94 V-2. Beschermingsgraad volgens IEC 60529: IP 55. Nominale isolatiespanning: 690 V. Materiaal: thermoplast, halogeen- en siliconenvrij. Kleur: grijs, RAL 7035. Dekselbevestigingsschroeven van V2A-staal. Merk: HENSEL DE. Nominale doorsnede: 2,5 mm², 5 klemmen, afmetingen HxBxD 88 x 88 x 50 mm
