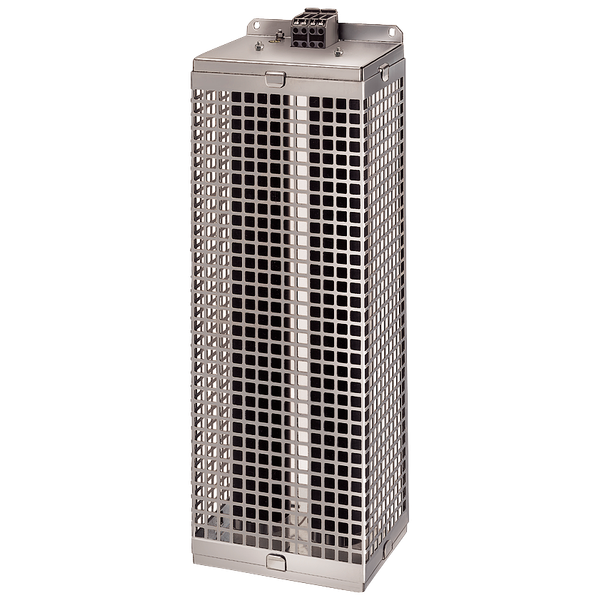

Braking resistor 2,35 Ohm 255,00 kW

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

3 426,97 € per pcs

This price is valid until 24.12.25

EAN: 0662643065121

MPN: 6SE7032-7ES87-2DC0

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Braking resistor 2,35 Ohm 255,00 kW
Brand	Siemens
Categories	Accessories/spare parts for frequency controller
Country of origin	DE
Harmonized System Code	8533 2900 00
Type of accessory/spare part	Breaking resistance

Packing details

Packing level 1

0662643065121

Other Technical data

Accessory	No
Spare part	No

Description

SINAMICS/ SIMOVERT MASTERDRIVES BRAKING RESISTOR 510-620V DC 170 KW, 2.35 OHM Braking resistor SINAMICS/SIMOVERT braking resistor for SINAMICS and SIMOVERT. Excess energy in the DC link is dissipated via the braking resistors. For generative operation, e.g. braking a mass with a large moment of inertia, a braking resistor must be connected that converts the energy to heat. The heat dissipated from the braking resistor must not adversely affect the cooling of the converter. For this reason, a minimum distance of 150 mm must be maintained between the converter and the braking resistor. The SINAMICS/SIMOVERT Masterdrives braking resistors are available for DC link voltages ranging from 510 V to 780 V and for line voltages ranging from 5 kW to 170 kW, and the SINAMICS/SIMOVERT braking resistors are available for DC link voltages ranging from 510 V to 620 V and for line voltages ranging from 5 kW to 10 kW. SINAMICS – simply my drive!
