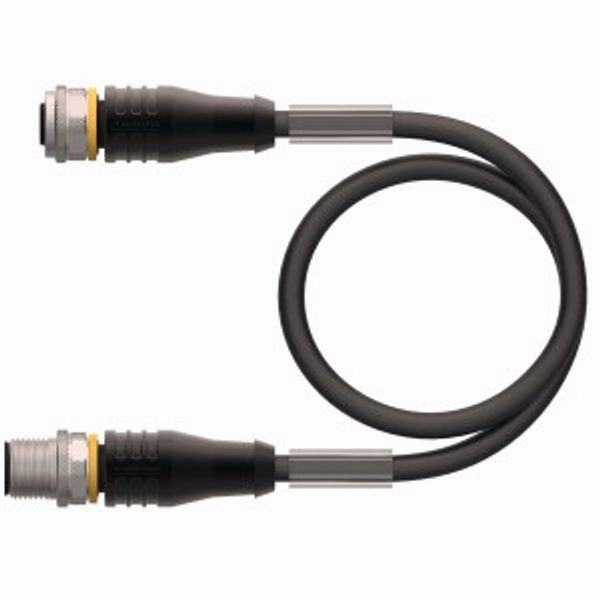

Actuator and Sensor Cable, PVC Extension Cable RKS4T-15-RSS4T/TEL
Order Only
Price (excl. VAT):
90,77 €
EAN: 4047101512878
MPN: 6634053
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Actuator and Sensor Cable, PVC Extension Cable RKS4T-15-RSS4T/TEL |
| Brand | TURCK |
| Categories |
Sensor-actuator Patch Cords
|
| Country of origin | PL |
| Harmonized System Code | 8544 4290 00 |
| Number of poles | 3 |
Packing details
| Packing level 1 | 4047101512878, 4047101512878 |
Other Technical data
| Rated voltage | 250 V |
| Cable length | 15 m |
| Permitted cable outer temperature during assembling/handling | 0 °C |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Type of electrical connection, box-sided | M12 |
| Type of electrical connection, field-sided | M12 |
| Positioning cable feed, box-sided | Straight |
| Positioning cable feed, field-sided | Straight |
| With LED indication | No |
| Type of plug-in contact, field sided | Male (plug) |
| Material contact body | CuZn |
| Colour cable sheath | Black |
| Rated current In | 4 A |
| Type of plug-in contact, box-sided | Female (bus) |
Description
Actuator- en sensorkabel / PVC, Verlengkabel, Nominale spanning 250 V, Kabellengte 15 m, M12-contraconnector, recht, 3-polig, afscherming gemonteerd op montagemoer/-schroef, M12-stekker, recht, 3-polig, Mantelmateriaal: PVC, afgeschermd, Mantelkleur zwart, Chemicaliën- en oliebestendig, Onontvlambaar, Zuren- en logenbestendig, Microben- en hydrolysebestendig, LABS-vrij, Beschermingsklasse: IP67, IP69K, kabellengte: 15 meter
