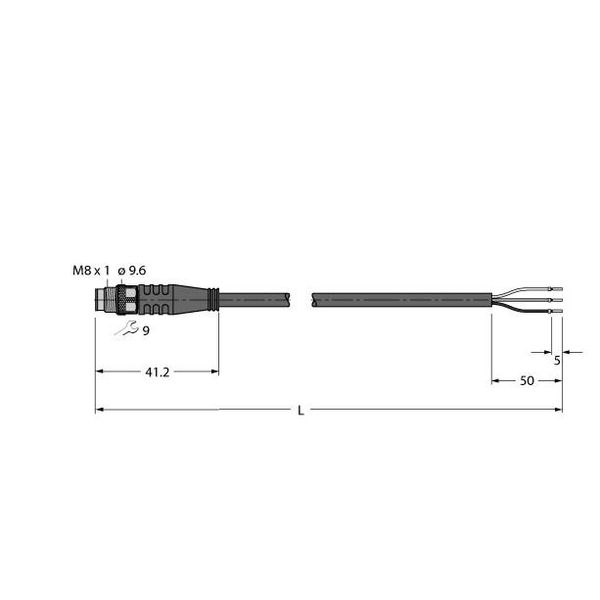

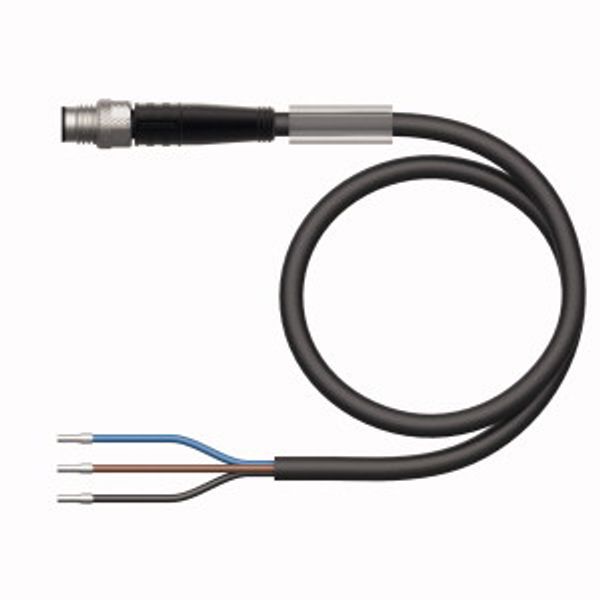

Actuator and Sensor Cable, PVC Connection Cable  PSG3M-4/TEL image 1
Actuator and Sensor Cable, PVC Connection Cable  PSG3M-4/TEL image 2
Actuator and Sensor Cable, PVC Connection Cable  PSG3M-4/TEL thumbnail 1
Actuator and Sensor Cable, PVC Connection Cable  PSG3M-4/TEL thumbnail 2
TURCK

Actuator and Sensor Cable, PVC Connection Cable  PSG3M-4/TEL

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
12,13 €
This price is valid until 24.12.25
EAN: 4047101432718
MPN: 6631398
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Actuator and Sensor Cable, PVC Connection Cable  PSG3M-4/TEL
Brand TURCK
Categories Sensor-actuator Patch Cords
Country of origin PL
Harmonized System Code 8544 4290 00
Number of poles 3

Packing details

Packing level 1 4047101432718, 4047101432718

Other Technical data

Cable length 4 m
Screened No
Permitted cable outer temperature during assembling/handling -5 °C
Permitted cable outer temperature after assembling without vibration -40 °C
Material of cable sheath Polyvinyl chloride (PVC)
Type of electrical connection, box-sided M8
Positioning cable feed, box-sided Straight
With LED indication No
Material contact body CuZn
Colour cable sheath Black
Rated current In 4 A
Type of plug-in contact, box-sided Male (plug)

Description

Actuator- en sensorkabel / PVC, Aansluitkabel, Nominale spanning [Umax] 60 VDC / 50 VAC, Kabellengte 4 m, M8-stekker, recht, 3-polig, Mantelmateriaal: PVC, Mantelkleur zwart, Chemicaliën- en oliebestendig, Onontvlambaar, Zuren- en logenbestendig, Microben- en hydrolysebestendig, LABS-vrij, Beschermingsklasse: IP67, IP69K, kabellengte: 4,0 meter
