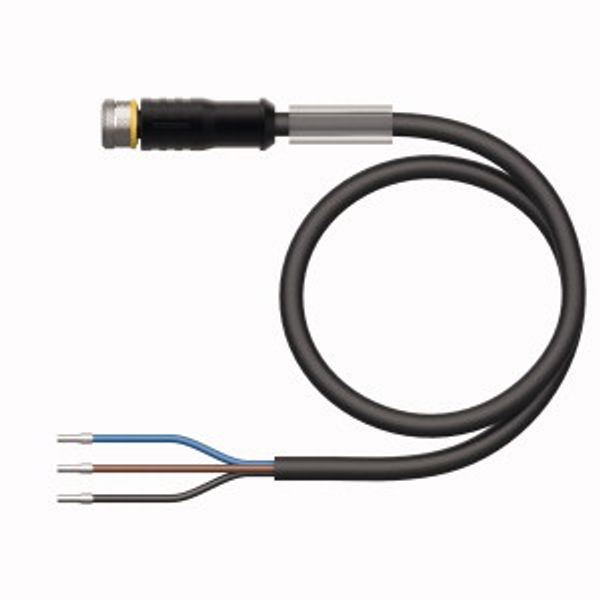

Actuator and Sensor Cable, PVC Connection Cable PKGS3M-10/TEL
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
36,54 €
EAN: 4047101305548
MPN: 6627415
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Actuator and Sensor Cable, PVC Connection Cable PKGS3M-10/TEL |
| Brand | TURCK |
| Categories |
Sensor-actuator Patch Cords
|
| Country of origin | CN |
| Harmonized System Code | 8544 4290 00 |
| Number of poles | 3 |
Packing details
| Packing level 1 | 4047101305548, 4047101305548 |
Other Technical data
| Halogen free | No |
| Cable length | 10 m |
| Screened | Yes |
| Permitted cable outer temperature during assembling/handling | 0 °C |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Vulcanize | No |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Type of electrical connection, box-sided | M8 |
| Positioning cable feed, box-sided | Straight |
| With LED indication | No |
| Material contact body | CuZn |
| Colour cable sheath | Black |
| Rated current In | 4 A |
| Type of plug-in contact, box-sided | Female (bus) |
Downloads
Description
Actuator- en sensorkabel / PVC, Aansluitkabel, Nominale spanning [Umax] 60 VDC / 50 VAC, Kabellengte 10 m, M8-contraconnector, recht, 3-polig, afscherming gemonteerd op montagemoer/-schroef, Mantelmateriaal: PVC, afgeschermd, Mantelkleur zwart, Chemicaliën- en oliebestendig, Onontvlambaar, Zuren- en logenbestendig, Microben- en hydrolysebestendig, LABS-vrij, Beschermingsklasse: IP67, IP69K, kabellengte: 10 meter
