TURCK

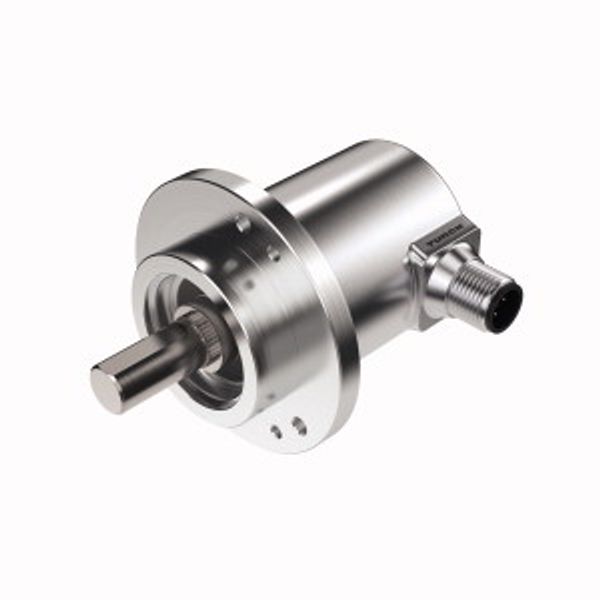

Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-118T10C-3C13S12M-H1181

Order only
Price (excl. VAT):
505,85 €
This price is valid until 24.12.26
EAN: 4047101546927
MPN: 100011504
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-118T10C-3C13S12M-H1181
Brand TURCK
Categories Rotary Encoders
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 9031 8020 00
Model Other
Housing material Other
Type of electric connection Plug-in connection
Degree of protection (IP) IP64
Diameter axle 10 mm

Packing details

Packing level 1 4047101546927, 4047101546927

Other Technical data

Programmable No
Physical measurement principle Magnetic

Downloads

Product data sheet

Description

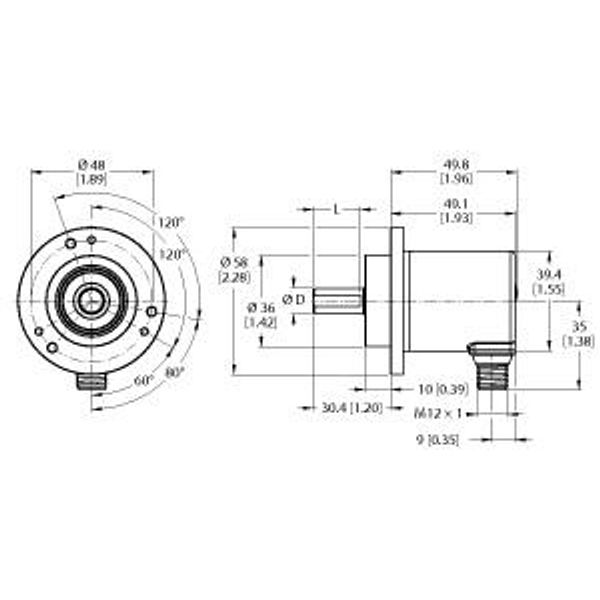

Absolute encoder - Multiturn, Efficiency-Line, Bedrijfsspanning 10…30 VDC, Klemflens, Ø 58 mm, Massieve as, Ø 10 mm × 20 mm, Magnetisch meetprincipe, Asmateriaal: Roestvast staal, Beschermingsklasse IP64 huis- en aszijde, ‐20…+70 °C, max. 4000 omw/min (continue werking: 2000 omw/min), Energy Harvesting-technologie, 10…30 V DC, SSI, gray, Connector, M12×1, 8‐polig, Singleturn-resolutie 13 Bit, Multiturn-resolutie 12 Bit
