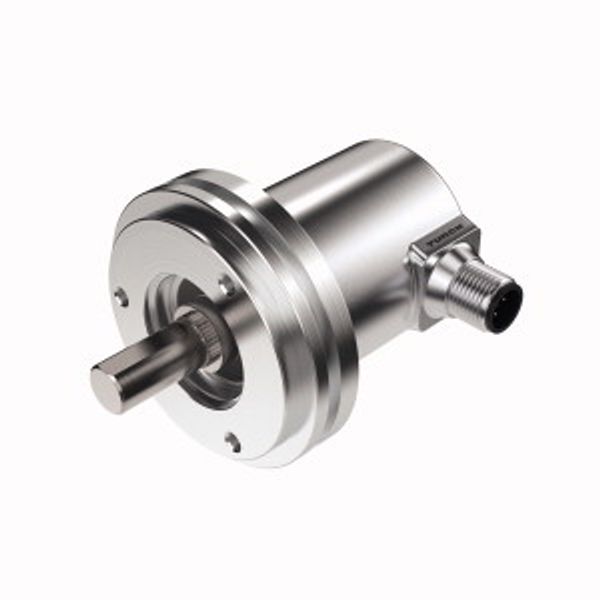

Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-116T10S-7AAR-H1151 image 1
Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-116T10S-7AAR-H1151 image 2
Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-116T10S-7AAR-H1151 thumbnail 1
Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-116T10S-7AAR-H1151 thumbnail 2
TURCK

Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-116T10S-7AAR-H1151

Order only
Price (excl. VAT):
592,11 €
This price is valid until 24.12.25
EAN: 4047101546897
MPN: 100011510
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Absolute Rotary Encoder - Multiturn Efficiency Line  REM-E-116T10S-7AAR-H1151
Brand TURCK
Categories Rotary Encoders
Country of origin DE
Harmonized System Code 9031 8020 00
Model Other
Housing material Other
Type of electric connection Plug-in connection
Degree of protection (IP) IP64
Diameter axle 10 mm

Packing details

Packing level 1 4047101546897, 4047101546897

Other Technical data

Programmable No
Standard for interfaces Analogue
Physical measurement principle Magnetic

Downloads

Product data sheet

Description

Absolute encoder - Multiturn, Efficiency-Line, Bedrijfsspanning 10…30 VDC, Synchroflens, Ø 58 mm, Massieve as, Ø 10 mm × 20 mm, Magnetisch meetprincipe, Asmateriaal: Roestvast staal, Beschermingsklasse IP64 huis- en aszijde, ‐20…+70 °C, max. 4000 omw/min (continue werking: 2000 omw/min), Energy Harvesting-technologie, 10…30 V DC, Analoge uitgang, 4…20 mA op 16 omwentelingen rechtsom, 12 bit resolutie, Connector, M12 × 1, 5‐polig
