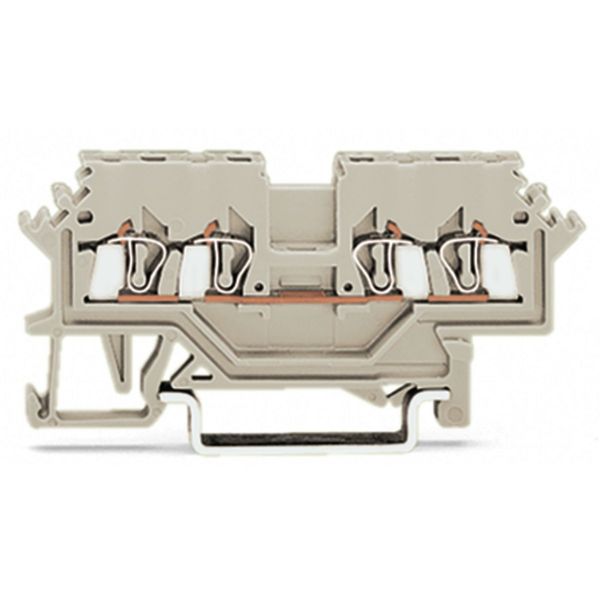

4-conductor through terminal block 1.5 mm² suitable for Ex e II applic

Order only Minimal order quantity: 100

Price (excl. VAT):

1,03 €

This price is valid until 24.12.26

Subtotal: 103,00 € MOQ: 100

EAN: 4044918504461

MPN: 279-990

Box: 100

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	4-conductor through terminal block 1.5 mm² suitable for Ex e II applic
Brand	WAGO
Categories	DIN Rail Terminal Blocks
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	550 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.2-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-1.5 mm²
Connectable conductor cross section multi-wired	0.2-1.5 mm²
Rated current In	15 A

Packing level 1

4044918504461

Colour	Other
Width	4 mm
Height	68 mm
Depth	27 mm
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Internally connected stages	FALSE
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	Yes

4-conductor through terminal block 1.5 mm² suitable for Ex e II applications lateral marker slots for DIN-rail 35 x 15 and 35 x 7.5 CAGE CLAMP®
