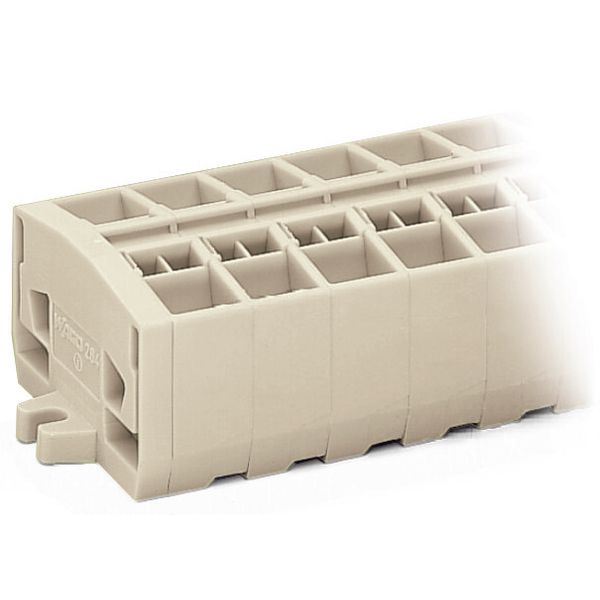

4-conductor terminal strip without push-buttons suitable for Ex e II a

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

6,72 €

This price is valid until 24.12.25

Subtotal: 336,00 € MOQ: 50

EAN: 4044918415729

MPN: 264-238

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	4-conductor terminal strip without push-buttons suitable for Ex e II a
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin	DE
Harmonized System Code	8536 9010 00
Rated voltage	690 V

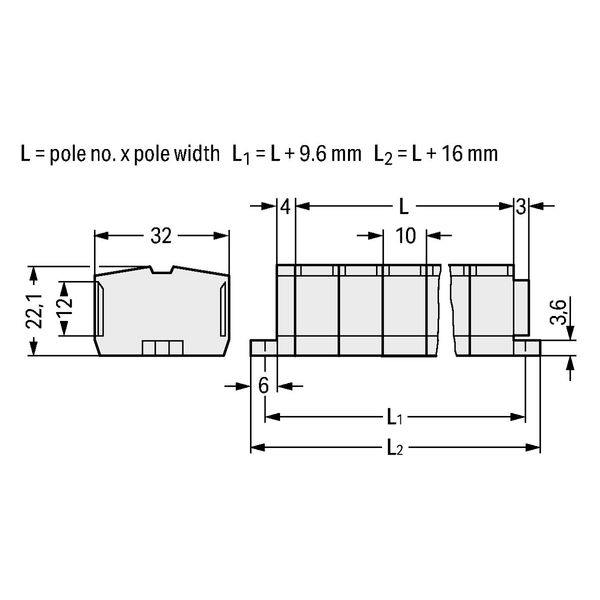

Drill hole distance centrically	105.6 mm
Rated current In	23 A
Explosion-tested version 'Ex e'	Yes

Packing level 1

4044918415729

Mounting method	Other
Colour	Other
Width	96 mm
Halogen free	Yes
Height	32 mm
Depth	22.1 mm
Number of poles	8
Operating temperature	105 °C
Number of clamp positions per pole	4
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
Material insulation body	Thermoplastic

4-conductor terminal strip without push-buttons suitable for Ex e II applications with fixing flanges 8-pole for screw or similar mounting types
