WAGO

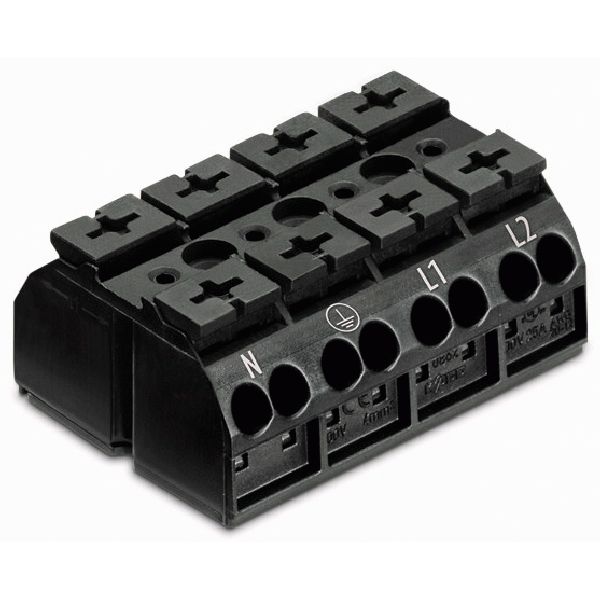

862-2504 4-conductor chassis-mount terminal strip; without ground contact; N-PE-L1-L2

Order only Minimal order quantity: 200
Price (excl. VAT):
2,06 €
This price is valid until 31.12.25
Subtotal: 412,00 € MOQ: 200
EAN: 4044918509947
MPN: 862-2504
Package: 1
Box: 200
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name 862-2504 4-conductor chassis-mount terminal strip; without ground contact; N-PE-L1-L2
Brand WAGO
Categories Terminal Block Accessories
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Rated voltage 500 V
Rated current In 32 A
Explosion-tested version 'Ex e' No

Packing details

Packing level 1 4044918509947
Packing level 2 4044918509947

Other Technical data

Mounting method Other
Colour Black
Width 48 mm
Halogen free Yes
Height 35 mm
Depth 22.3 mm
Number of poles 4
Operating temperature 105 °C
Number of clamp positions per pole 4
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Transparent No
Connectable conductor cross section solid-core 0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-4 mm²
Connectable conductor cross section multi-wired 0.5-4 mm²
Material insulation body Thermoplastic

Description

4-conductor chassis-mount terminal strip; without ground contact; N-PE-L1-L2; 4-pole; for 3 mm ø screw and nut; 4 mm²; 4,00 mm²; black
