4-conductor chassis-mount terminal strip with ground contact PE-N-L1-L

Order only Minimal order quantity: 200

Price (excl. VAT):

2,21 €

This price is valid until 24.12.26

Subtotal: 442,00 € MOQ: 200

EAN: 4044918511230

MPN: 862-9634

Box: 200

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	4-conductor chassis-mount terminal strip with ground contact PE-N-L1-L
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	500 V
Rated current In	32 A
Explosion-tested version 'Ex e'	No

Packing level 1

4044918511230

Mounting method	Other
Colour	White

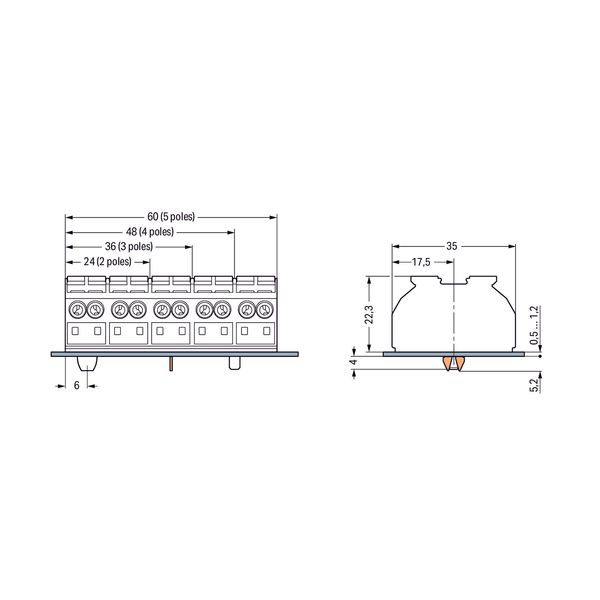

Width	48 mm
Halogen free	Yes
Height	35 mm
Depth	22.3 mm
Number of poles	4
Operating temperature	105 °C
Number of clamp positions per pole	4
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-4 mm²
Connectable conductor cross section multi-wired	0.5-4 mm²
Material insulation body	Thermoplastic

4-conductor chassis-mount terminal strip with ground contact PE-N-L1-L2 4-pole 1 snap-in foot per pole 4 mm² 4,00 mm² white
