WAGO

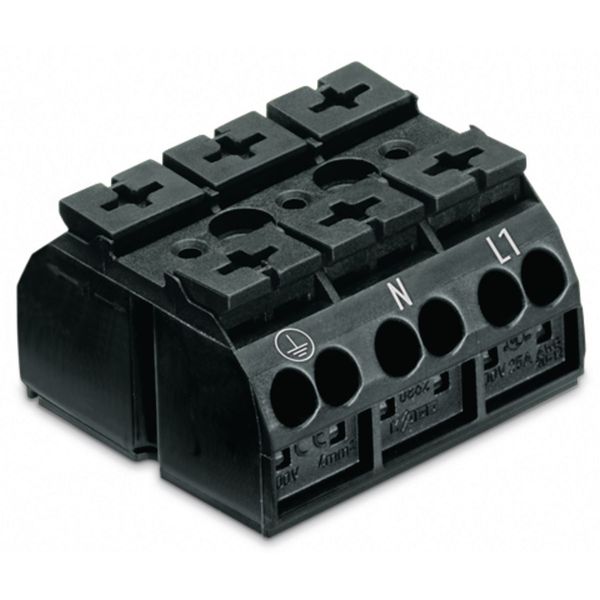

4-conductor chassis-mount terminal strip with ground contact PE-N-L1 b

In stock: No Vendor stock: No Minimal order quantity: 250
Price (excl. VAT):
1,67 €
This price is valid until 31.12.25
Subtotal: 417,50 € MOQ: 250
EAN: 4044918510981
MPN: 862-9533
Package: 1
Box: 250
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name 4-conductor chassis-mount terminal strip with ground contact PE-N-L1 b
Brand WAGO
Categories Terminal Block Accessories
Country of origin DE
Harmonized System Code 8536 9010 00
Rated voltage 500 V
Rated current In 32 A
Explosion-tested version 'Ex e' No

Packing details

Packing level 1 4044918510981
Packing level 2 4044918510981

Other Technical data

Mounting method Other
Colour Black

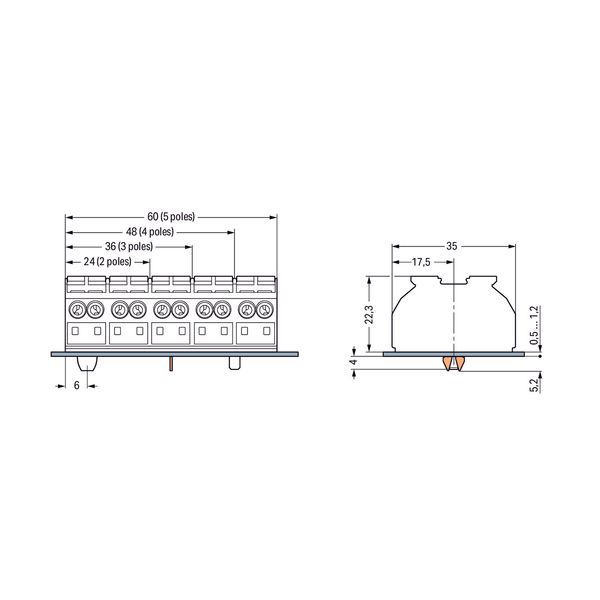

Width 36 mm
Halogen free Yes
Height 35 mm
Depth 22.3 mm
Number of poles 3
Operating temperature 105 °C
Number of clamp positions per pole 4
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Transparent No
Connectable conductor cross section solid-core 0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-4 mm²
Connectable conductor cross section multi-wired 0.5-4 mm²
Material insulation body Thermoplastic

Description

4-conductor chassis-mount terminal strip with ground contact PE-N-L1 3-pole 1 snap-in foot per pole 4 mm² 4,00 mm² black
