TURCK

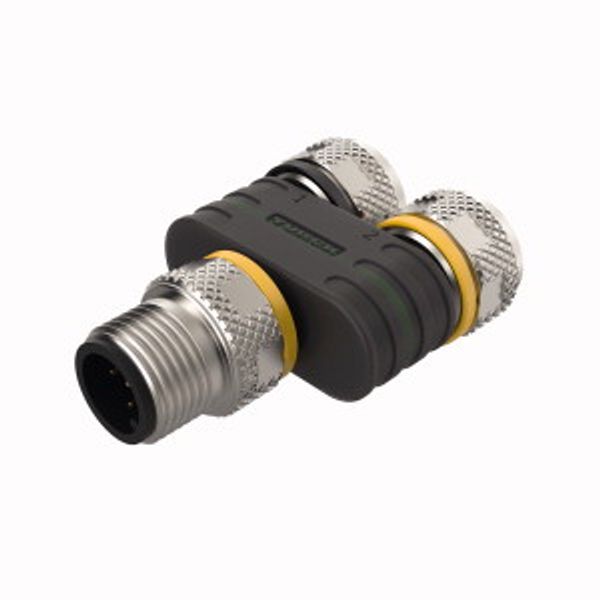

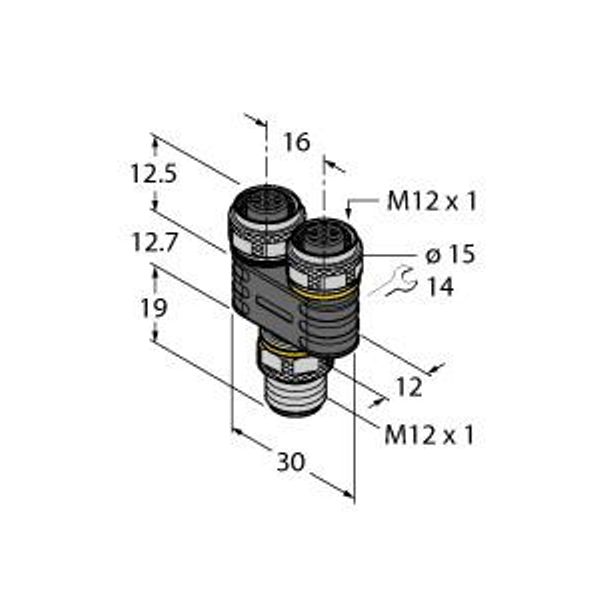

2-Way Splitter Y-Splitter without Cable, Male Connector — 2 × Female Connectors  YB2-FSM4.4-2FKM4

Order Only Minimal order quantity: 1
Price (excl. VAT):
24,56 €
This price is valid until 24.12.25
EAN: 4047101462890
MPN: 6631900
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name 2-Way Splitter Y-Splitter without Cable, Male Connector — 2 × Female Connectors  YB2-FSM4.4-2FKM4
Brand TURCK
Categories Pre-wired Sensor/Actuator Module
Country of origin CN
Harmonized System Code 8536 6990 00
Rated voltage 250 V
Operating voltage 250 V

Packing details

Packing level 1 4047101462890, 4047101462890

Other Technical data

With potential separation No
Material of contact surface Gold
Degree of protection (IP) IP67
With LED indication No
Pollution degree 3
Connection for NPN-sensors No
Cable length configurable No
Fix cable version suitable for cable guide chain No
Material insulation body Other
Material contact body Brass

Downloads

Product data sheet

Description

2-weg splitter, Y-verdeler zonder kabel, connector - 2x contraconnector, Nominale spanning 250 V, M12-connector, 4-polig, M12-contraconnector, 3-polig, RoHS-conform, Beschermingsklasse IP67
