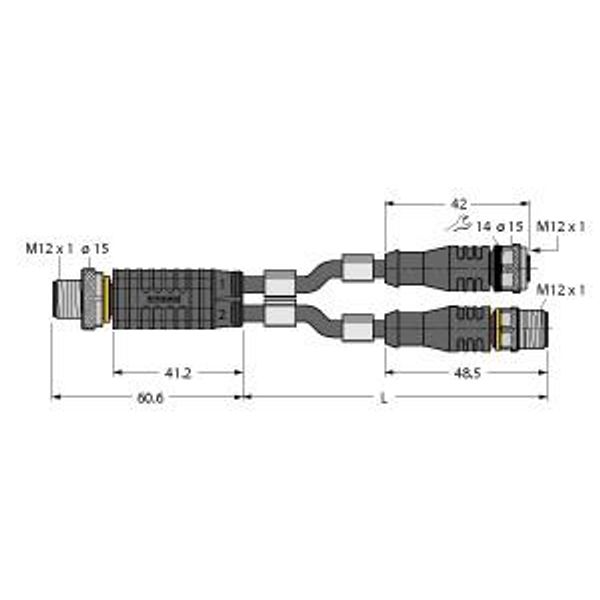

2-Way Splitter Y-Splitter with Cable, M12 × 1 Male - Female, M12 × 1 Male VB-IO-LINK-CLASS-B-POWER-0.3/0.3/TXL

Name: 2-Way Splitter Y-Splitter with Cable, M12 × 1 Male - Female, M12 × 1 Male VB-IO-LINK-CLASS-B-POWER-0.3/0.3/TXL
Brand: TURCK
Price: 53.680 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

53,68 €

This price is valid until 24.12.25

EAN: 4047101355789

MPN: 6629516

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	2-Way Splitter Y-Splitter with Cable, M12 × 1 Male - Female, M12 × 1 Male VB-IO-LINK-CLASS-B-POWER-0.3/0.3/TXL
Brand	TURCK
Categories	Pre-wired Sensor/Actuator Module
Country of origin	CN
Harmonized System Code	8544 4290 00
Rated voltage	48 V
Operating voltage	48 V
Length of the preassembled cable	0.3 m

Packing details

Packing level 1

4047101355789, 4047101355789

Other Technical data

Operating temperature	-50 °C
With potential separation	No
Material of contact surface	Gold
Degree of protection (IP)	IP67
With LED indication	No
Pollution degree	3
Connection for NPN-sensors	No
Cable length configurable	No
Fix cable version suitable for cable guide chain	No
Material insulation body	Other
Material contact body	Brass

Downloads

Product data sheet

Description

2-weg splitter, Y-verdeler met kabel, connector M12 × 1 - contraconnector, connector M12 × 1, Nominale spanning 48 V, Kabellengte 0.3 m, Mantelmateriaal: PUR, Mantelkleur: zwart, Geschikt voor sleepkettingen, Chemicaliën-, UV- en oliebestendig, Vlamwerend (FT2 conform UL 1581, IEC 60332-2-2), Halogeen-, siliconen-, PVC- en LABS-vrij, Bijzonder slijtvast, RoHS-conform, Beschermingsklasse: IP67, Kabellengte: 0,3 / 0,3 meter
