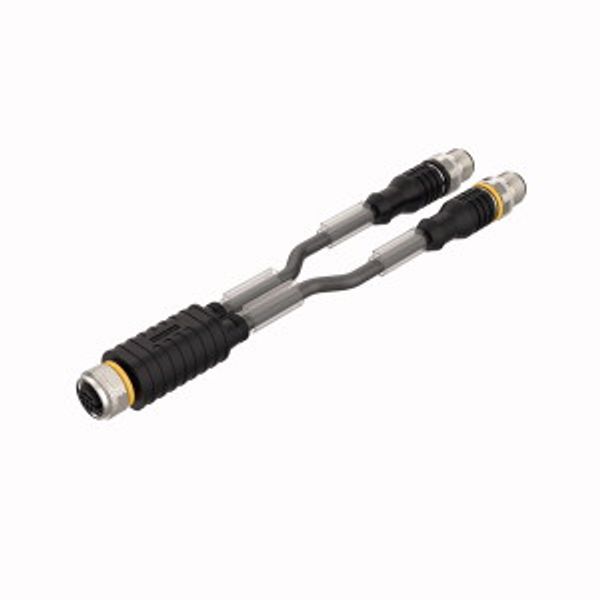

2-Way Splitter Y-Splitter with Cable, Female Connector M12 × 1 - 2 × Male Connectors M12 × 1 VBRK4.4-2RSC4T-0.6/0.6/TEL
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
36,40 €
EAN: 4047101367683
MPN: 6629967
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 2-Way Splitter Y-Splitter with Cable, Female Connector M12 × 1 - 2 × Male Connectors M12 × 1 VBRK4.4-2RSC4T-0.6/0.6/TEL |
| Brand | TURCK |
| Categories |
Pre-wired Sensor/Actuator Module
|
| Country of origin | CN |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 48 V |
| Operating voltage | 48 V |
| Length of the preassembled cable | 0.6 m |
Packing details
| Packing level 1 | 4047101367683, 4047101367683 |
Other Technical data
| Operating temperature | -40 °C |
| With potential separation | No |
| Material of contact surface | Gold |
| Degree of protection (IP) | IP67 |
| With LED indication | No |
| Pollution degree | 3 |
| Connection for NPN-sensors | No |
| Cable length configurable | No |
| Fix cable version suitable for cable guide chain | No |
| Material insulation body | Other |
| Material contact body | Brass |
Downloads
Description
2-weg splitter, Y-verdeler met kabel, contraconnector M12 × 1 - 2x connector M12 × 1, Nominale spanning 48 V, Kabellengte 0.6 m, Mantelmateriaal: PVC, Mantelkleur: zwart, Chemicaliën- en oliebestendig, Onontvlambaar, Bestand tegen zuren en logen, Microben- en hydrolysebestendig, LABS-vrij, RoHS-conform, Beschermingsklasse IP67, 4/3-polig, Kabellengte: 0,6 / 0,6 meter
