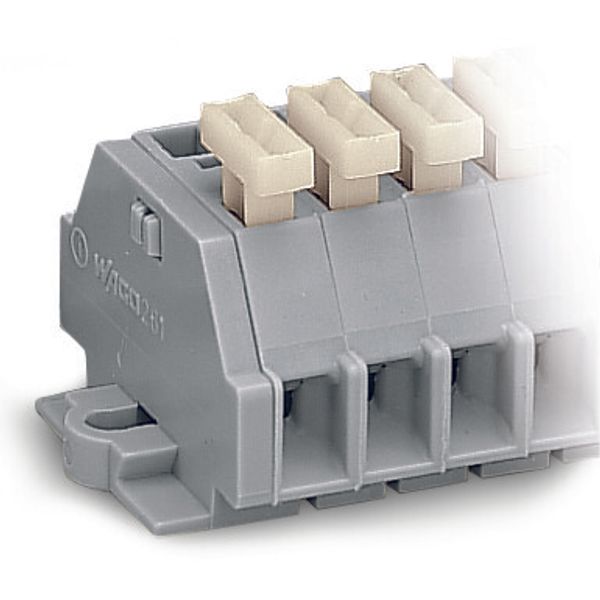

2-conductor terminal strip on one side with push-buttons with snap-in

Order only Minimal order quantity: 50

Price (excl. VAT):

1,98 €

This price is valid until 24.12.25

Subtotal: 99,00 € MOQ: 50

EAN: 4055143410434

MPN: 261-156/331-000

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	2-conductor terminal strip on one side with push-buttons with snap-in
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	500 V
Rated current In	24 A
Explosion-tested version 'Ex e'	No

Packing level 1

4055143410434

Mounting method	Other
Colour	Grey

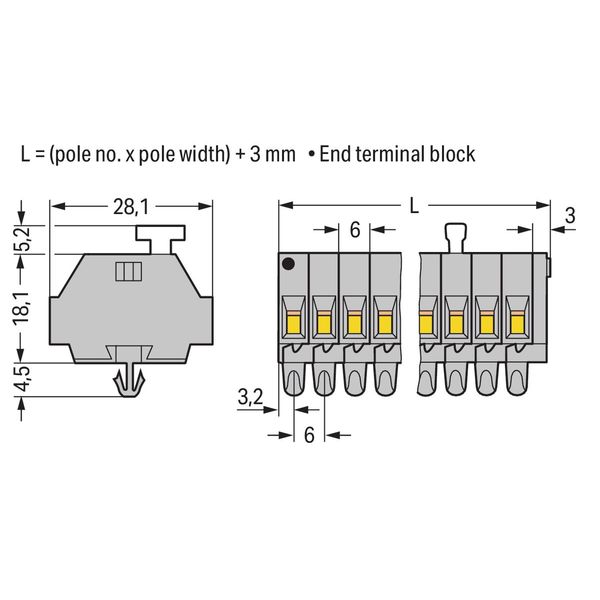

Width	39 mm
Halogen free	Yes
Height	28.1 mm
Depth	23.3 mm
Number of poles	6
Operating temperature	-30-85 °C
Number of clamp positions per pole	2
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.08-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08-2.5 mm²
Connectable conductor cross section multi-wired	0.08-2.5 mm²
Material insulation body	Thermoplastic

2-conductor terminal strip on one side with push-buttons with snap-in mounting feet 6-pole for plate thickness 0.6 - 1.2 mm Fixing hole 3.5 mm Ø
