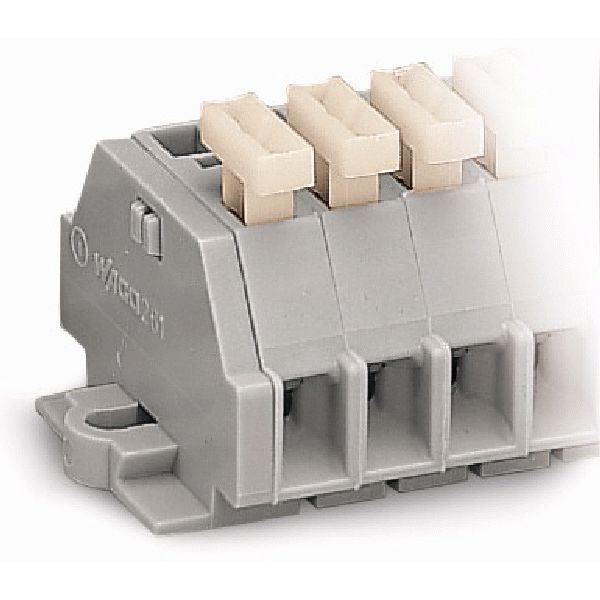

2-conductor terminal strip on one side with push-buttons with snap-in

In stock: No Vendor stock: No Minimal order quantity: 25

Price (excl. VAT):

3,24 €

This price is valid until 24.12.25

Subtotal: 81,00 € MOQ: 25

EAN: 4045454722876

MPN: 261-160/331-000

Box: 25

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	2-conductor terminal strip on one side with push-buttons with snap-in
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin	DE
Harmonized System Code	8536 9010 00
Rated voltage	500 V
Rated current In	24 A
Explosion-tested version 'Ex e'	No

Packing level 1

4045454722876

Mounting method	Other
Colour	Grey
Width	63 mm
Halogen free	Yes
Height	28.1 mm
Depth	23.3 mm
Number of poles	10
Operating temperature	-30-85 °C
Number of clamp positions per pole	2
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.08-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08-2.5 mm²
Connectable conductor cross section multi-wired	0.08-2.5 mm²
Material insulation body	Thermoplastic

2-conductor terminal strip on one side with push-buttons with snap-in mounting feet 10-pole for plate thickness 0.6 - 1.2 mm Fixing hole 3.5 mm Ø
