2-conductor fuse terminal block with pivoting fuse holder for 5 x 30 m

In stock: No Vendor stock: No Minimal order quantity: 25

Price (excl. VAT):

5,20 €

This price is valid until 24.12.25

Subtotal: 130,00 € MOQ: 25

EAN: 4045454824037

MPN: 2006-1621/1000-836

Box: 25

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	2-conductor fuse terminal block with pivoting fuse holder for 5 x 30 m
Brand	WAGO
Categories	DIN Rail Terminal Blocks
Country of origin	DE
Harmonized System Code	8536 9095 00
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	800 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Type of fuse insert	G-fuse 5x30 mm
Type of fuse holder	Swivelling
Type of indication element for defect indication	LED
Supply voltage for defect-indication	230 V
Number of levels	1
Voltage type for defect indication	AC
Connectable conductor cross section solid-core	1-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve	1.5-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-10 mm²
Connectable conductor cross section multi-wired	0.5-6 mm²
Rated current In	10 A

Packing level 1

4045454824037

Colour	Grey
Width	7.5 mm
Height	96.3 mm
Depth	59 mm
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Material insulation body	Thermoplastic

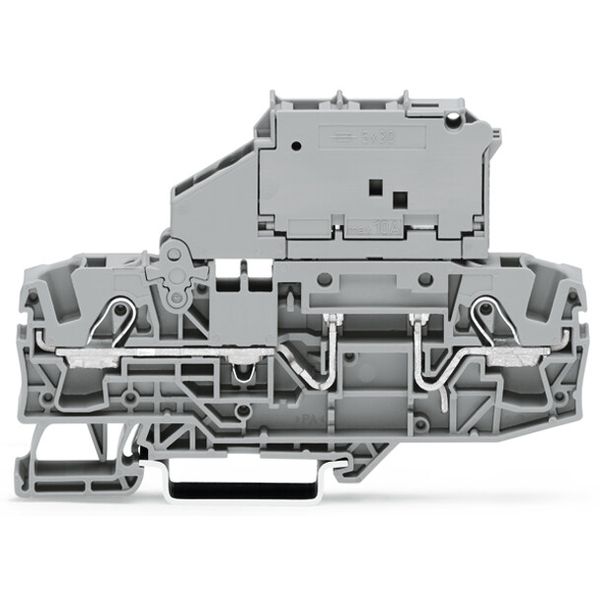

2-conductor fuse terminal block with pivoting fuse holder for 5 x 30 mm miniature metric fuse with blown fuse indication by LED 230 V for DIN-rai
