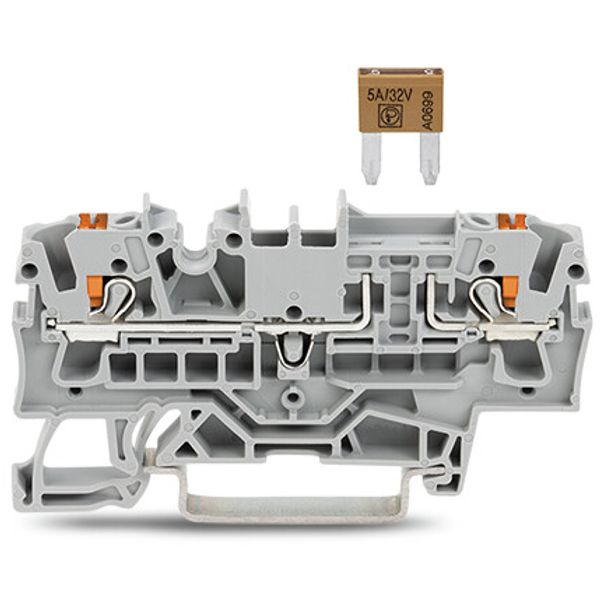

2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 image 1
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 image 2
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 image 3
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 image 4
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 image 5
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 thumbnail 1
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 thumbnail 2
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 thumbnail 3
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 thumbnail 4
2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3 thumbnail 5
WAGO

2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3

Order only Minimal order quantity: 50
Price (excl. VAT):
1,21 €
This price is valid until 24.12.25
Subtotal: 60,50 € MOQ: 50
EAN: 4055143907651
MPN: 2202-1681
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name 2202-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3
Brand WAGO
Categories DIN Rail Terminal Blocks
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9095 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 400 V
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Type of fuse insert Blade fuse
Type of fuse holder Pluggable
Type of indication element for defect indication None
Number of levels 1
Connectable conductor cross section solid-core 0.75-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.25-4 mm²
Connectable conductor cross section multi-wired 0.25-2.5 mm²
Rated current In 10 A

Packing details

Packing level 1 4055143907651
Packing level 2 4055143907651

Other Technical data

Colour Grey
Width 5.2 mm
Height 66.1 mm
Depth 32.9 mm
Operating temperature 105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Material insulation body Thermoplastic

Description

2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; with push-button; without blown fuse indication; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
